Q1860-90918 6 Removing and replacing parts 125
2 Remove the two self-tapping screws (callout 2) that hold the cover to the front of the chassis.

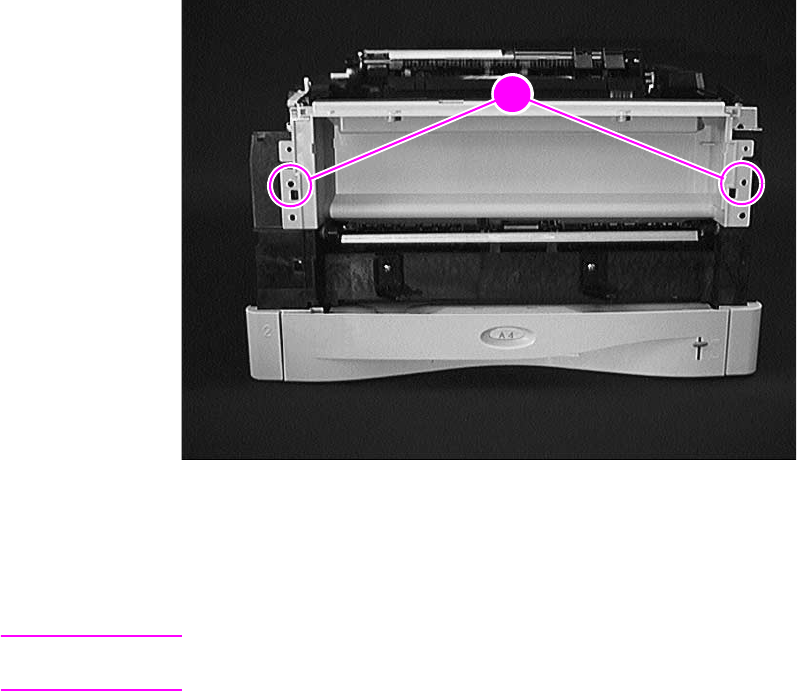

Figure 53. Tray 1 inner cover removal (2 of 2, front of printer)
3 Facing the front of the printer, slip the cover off of the locator pins by tilting it to the right and
then sliding it off to the right, avoiding the paper sensor.
Note An extension of the paper-sensor flag fits into a slot in the Tray 1 lift plate (see page 154). Orient
the flag so that it aligns with both the slot and the cutout in the left side of the chassis.
