270 Parts and diagrams Q1860-90918

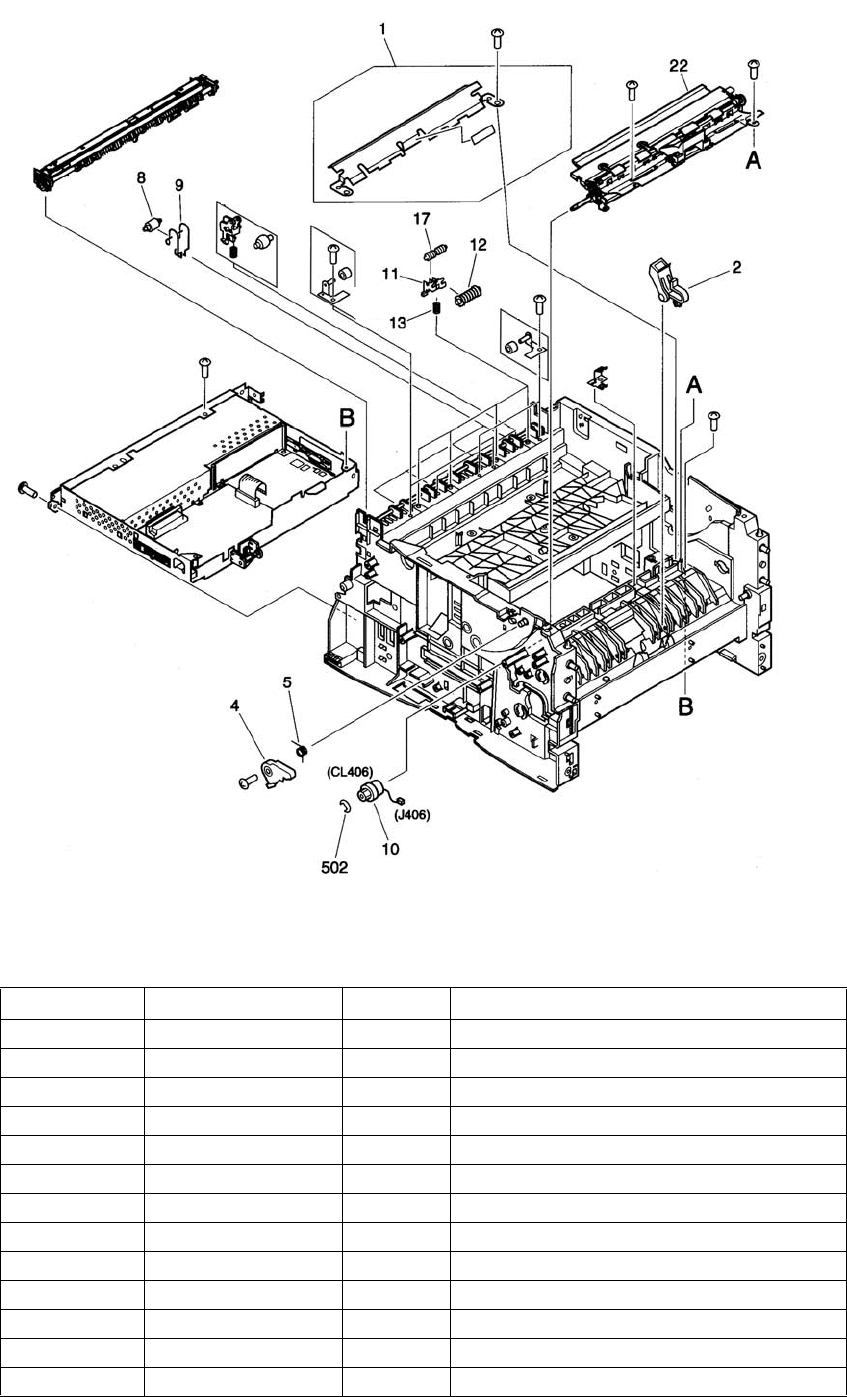

Figure 166. Internal components (3 of 4)
See
figure 168
Table 69. Internal components (3 of 4)
Item number Part number Quantity Description
1 RF5-4118-000CN 1 Transfer guide assembly
2 RF5-4117-000CN 2 Pad assembly
4 RB2-1732-000CN 1 Door switch
5 RB2-1739-000CN 1 Door switch spring
8 RB1-6251-000CN 4 Roller, lower-back delivery
9 RB2-2076-000CN 4 Roller spring, lower-back delivery
10 RH7-5346-000CN 1 Clutch, feed rollers
11 RB2-1997-000CN 4 Roller holder, top delivery
12 RG9-1337-000CN 4 Roller 1, face-down guide
13 RS5-2225-020CN 4 Roller spring, top delivery
17 RB2-1998-000CN 4 Roller 2, face-down guide
22 RG5-4916-000CN 1 Registration roller assembly
502 XD2-1100-322CN 1 E-ring
