Q1860-90918 6 Removing and replacing parts 139
Formatter assembly
1 Print a menu map and a configuration page, if possible, to use as a reference when you
reinstall the new formatter.
2 Remove any EIO accessories from the EIO slots.

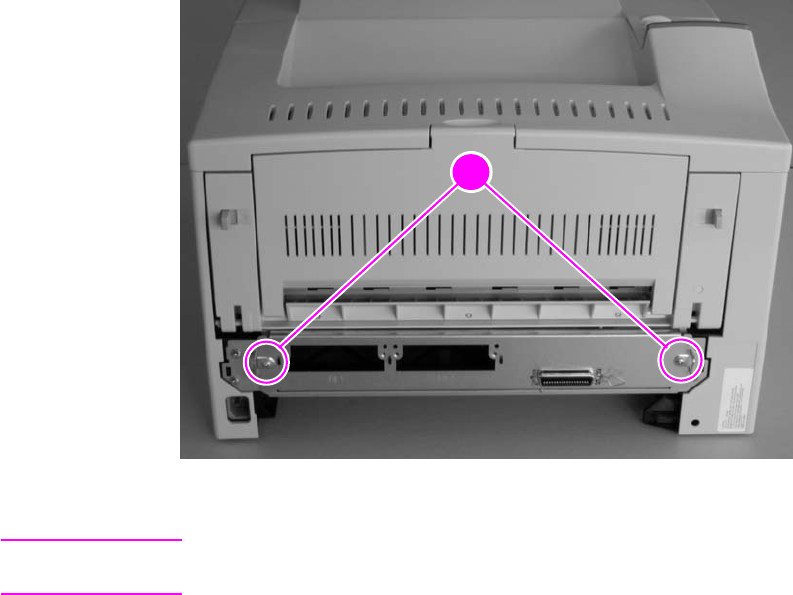

3 Facing the back of the printer, loosen the two captive screws (callout 1) and slide the
formatter assembly out.
4 Remove any DIMMs from the DIMM slots.
Figure 68. Formatter assembly removal
Note After you reinstall the formatter, update the printer configuration, if necessary, using the pages
that you printed in step 1 (see Service mode on page 59).
2
1
