Q1860-90918 6 Removing and replacing parts 145
4 Remove the two M3x8 machine screws (callout 1) that are in the center of the printer and
under the registration assembly roller guide.

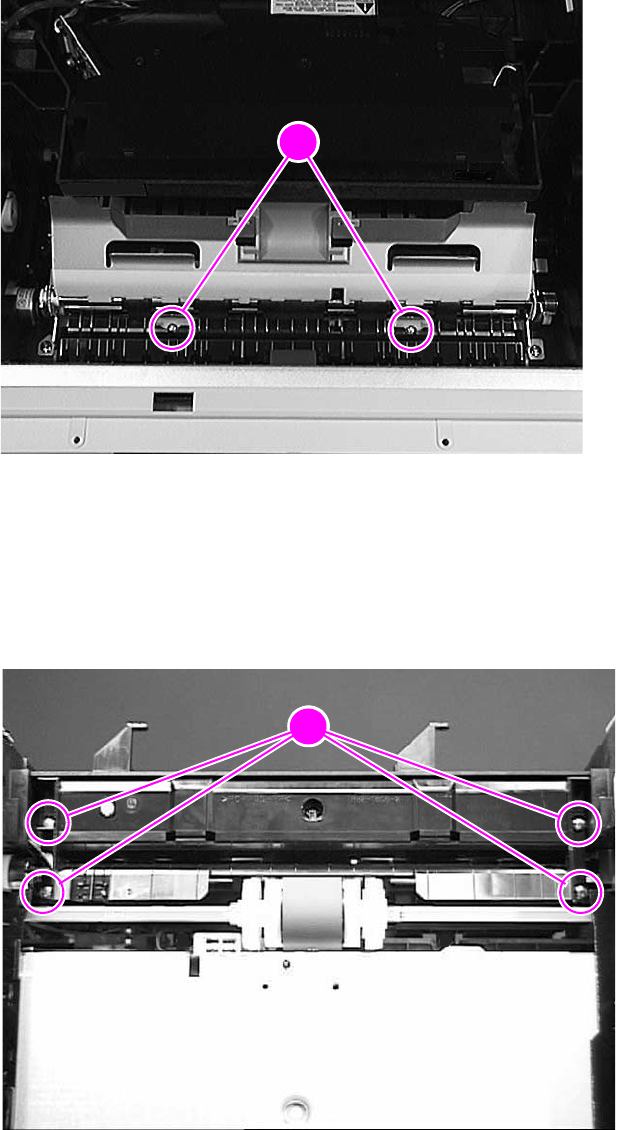

Figure 76. Paper-feed roller assembly removal (2 of 3, location of two screws inside the printer)
5 Remove the paper tray, and tilt the printer back, with the front facing up.
6 Remove the four self-tapping screws (callout 2) that hold the paper-feed roller assembly to
the chassis. They are located on the bottom of the printer.
Figure 77. Paper-feed roller assembly removal (3 of 3, bottom view of printer)
7 Remove the paper-feed roller assembly from the chassis, carefully feeding the cable through
the hole in the chassis.
