Q1860-90918 6 Removing and replacing parts 131
Paper-handling PCA
1 Remove the top cover (see page 115) and the left side cover (page 123).
2 Facing the left side of the printer, disconnect the cable (callout 1) from the PCA.
3 Remove two self-tapping screws (callout 2) and two machine screws (callout 3) from the
PCA.
4 Rotate the PCA outward, and disconnect the five cables (callout 4).

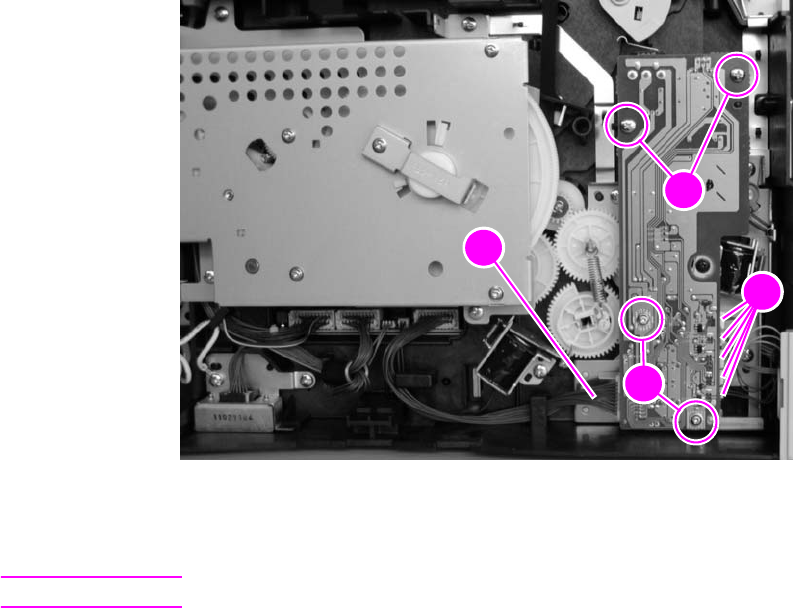

Figure 60. Paper-handling PCA removal
Note Readjust the top margin after you replace the paper-handling PCA (see page 132).
2
2
4
2
2
1
2
3
