120 Removing and replacing parts Q1860-90918
Front cover and Tray 1
Note The front cover and the Tray 1 guide must be removed individually.
1 Open the front cover (callout 1).
2 Disengage the Tray 1 guide pins (callout 2) from inside the front cover by pushing the guides
outward. The cover and Tray 1 will separate from each other.
3 Press the Tray 1 guide (callout 3) against the printer.

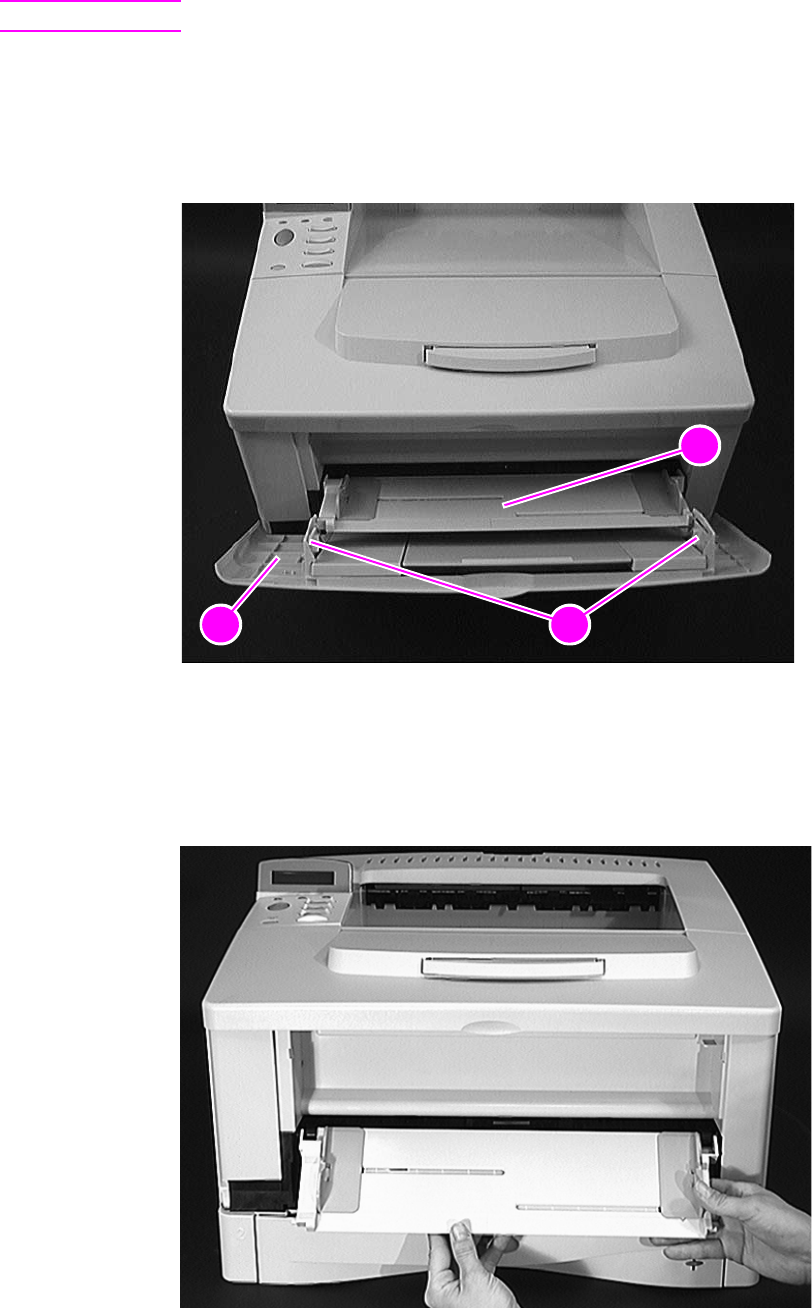

Figure 46. Front cover removal
4 Release the front cover, allowing it to pivot freely on its keyed pins. The cover will slide off the
pins to the right at its lowest position.
5 Release the Tray 1 guide by allowing the guide to slide off the keyed pins at its lowest
position.
Figure 47. Tray 1 guide removal
2
2
1
2
2
3
