Q1860-90918 6 Removing and replacing parts 161
Upper delivery assembly
1 Remove the top cover (see page 115), the left and right side covers (page 123), and the
main gear assembly (page 134).
2 Face the left side of the printer.
3 The delivery assembly is secured by three tabs on each side. Use the flat-blade screwdriver
to gently release the tabs on each side, and then lift the assembly out.
Note After you release one tab, lift the assembly only slightly until you release the tab on the opposite
side.

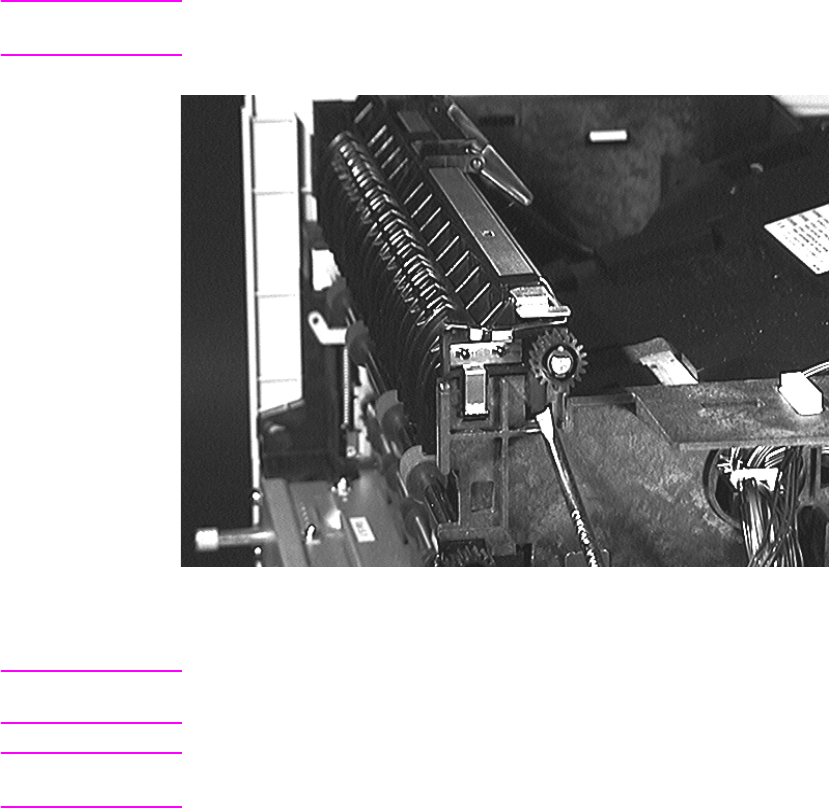

Figure 94. Upper delivery assembly removal
CAUTION The face-down bin-full sensor is on the left side of the upper delivery assembly. Be careful not to
damage it as you slide the delivery assembly out of the chassis.
Note To reassemble the upper delivery assembly, slide the assembly straight down to lock it in place.
Make sure the face-down bin-full sensor is free to move on the left side.
