Q1860-90918 6 Removing and replacing parts 137
Tray 1 pickup solenoid
1 Remove the paper-handling PCA (see page 131).
2 Remove the Tray 1 solenoid by removing one black machine screw (callout 1) and sliding the
solenoid assembly away from the pickup gear assembly.

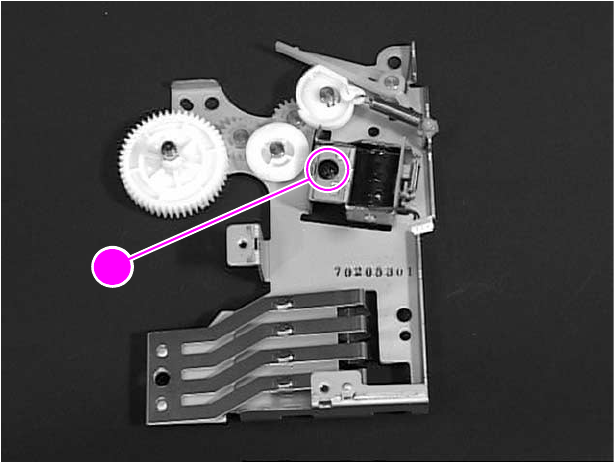

Figure 66. Tray 1 pickup solenoid removal
2
1
