3. Installation
Layer 3 can be an optional audio&video layer or an optional SDI (SDI Input/Output)

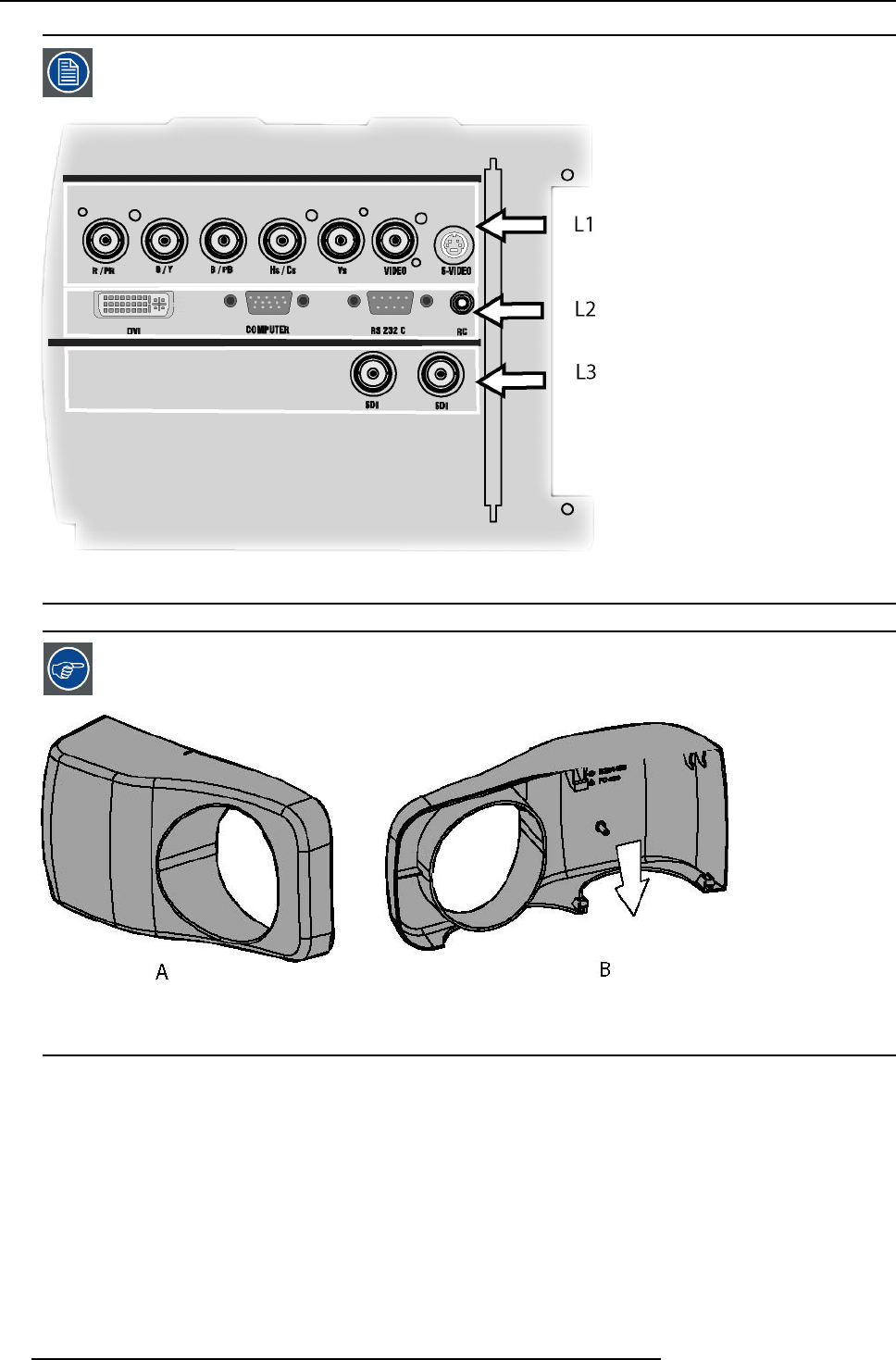

Image 3-10
source input section with optional SDI layer
A cable cover is supplied with the projector and can be fitted on the front of the projector
Image 3-11
Cable basket : the white arrow shows the cables leaving the projector
A Front view
B Back view
3.5.2.3 5-Cable input
Input specifications
The 5-cable input section is made of 5 BNC input terminals.
0.7 Vpp ± 3dB
75 Ω terminated
18
