3. Installation

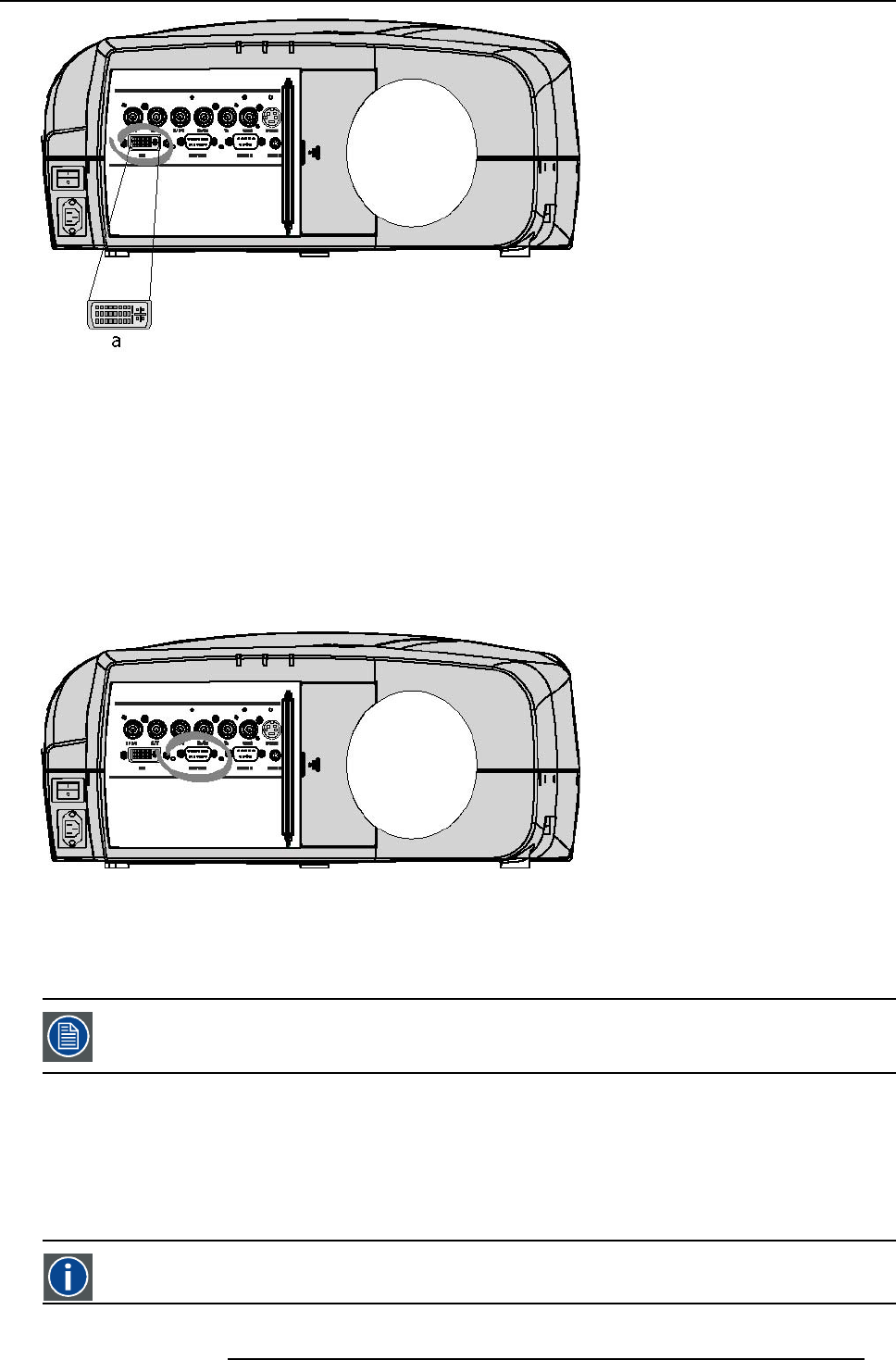

Image 3-15
a DVI-I type connector, analog link (4 pins at the right side of the connector) not supported
How to select the DVI Input ?
1. Press 5 on the RCU
Note: Another way for selecting this input is via the Menu.
3.5.2.7 Computer input
Input specification
TTL sync input : U
min
=2.0V
RGB input = 0.7 V
pp
± 3dB
Image 3-16
What can be connected ?
•RGBHV
•RG
S
B
Composite sync only possible on Green
How to select a computer input ?
1. Press 2 on the RCU
Note: Another way for selecting this input is via the Menu.
3.5.2.8 Serial Digital Interface (Optional)
SDI
Serial Digital Interface
R59770134 ID LR-6 27/05/2011 21
