4. We start by setting both projectors to the common red coordinate.
Tip: Draw a quick sketch of both gamuts as a graphical help.
650640
310
320
330
660
R1
R2

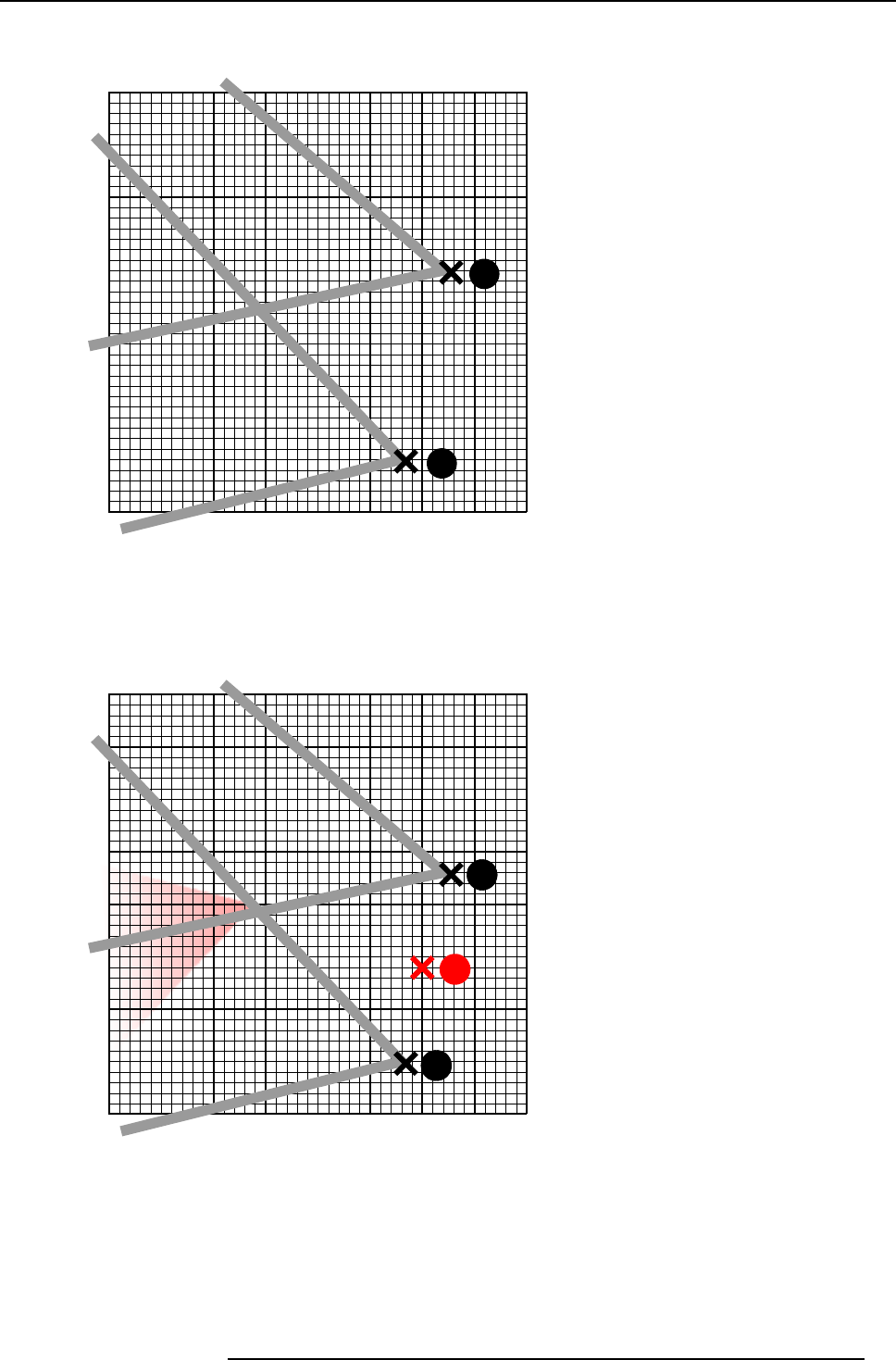

Image 6-49
Red coordinates for both projectors
5. Display the internal color bar pattern on both projectors.
6. In the desired values, adjust the red coordinate to a common value for both projectors.
Tip: The color bar of the adjusted coordinate will no longer be displayed in case the coordinate is not present within the gamut
of the adjusted projector e.g. with the des ired values for red set to x=660 and y= 318.
650640
310
320
330
660
Rc
R1
R2
Image 6-50
Coordinate is not present within the gamut of the adjusted projector
