(6) Remove the Edge actuator spring from the Actuator holder ASSY.
(7) Release the Hook and Slide the Edge actuator to remove the Edge actuator from the
Actuator holder ASSY.

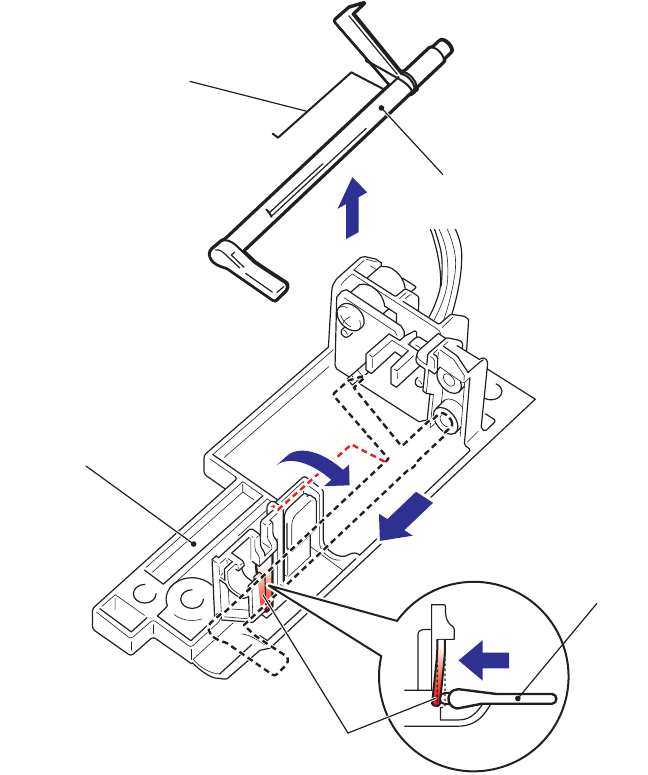

Fig. 3-49
Edge actuator
Edge actuator spring
Edge actuator
Actuator holder ASSY
Hook
7c
7b
7a
6
