3-44
Confidential
8.21 FAN MOTOR 60 UNIT / COVER SENSOR HARNESS ASSY / TONER LED
PCB ASSY
8.21.1 FAN MOTOR 60 UNIT
(1) Disconnect the Connector from the Toner LED PCB ASSY.
(2) Remove the Fan motor 60 unit from the Main body.

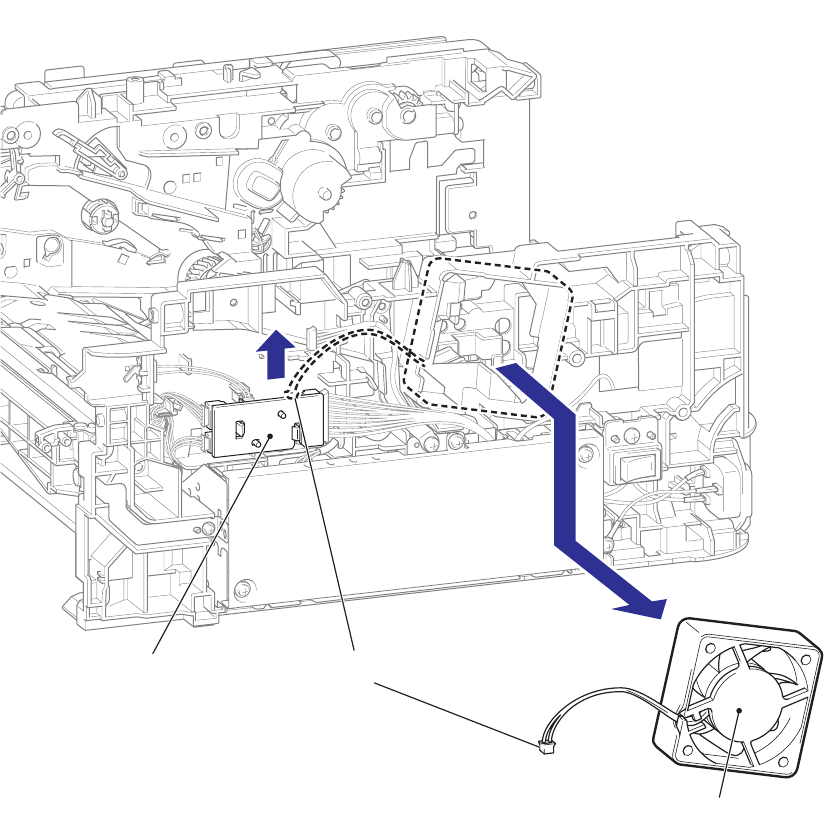

Fig. 3-39
Fan motor 60 unit
Connector
Toner LED PCB ASSY
2
1
