8.6 FUSER UNIT

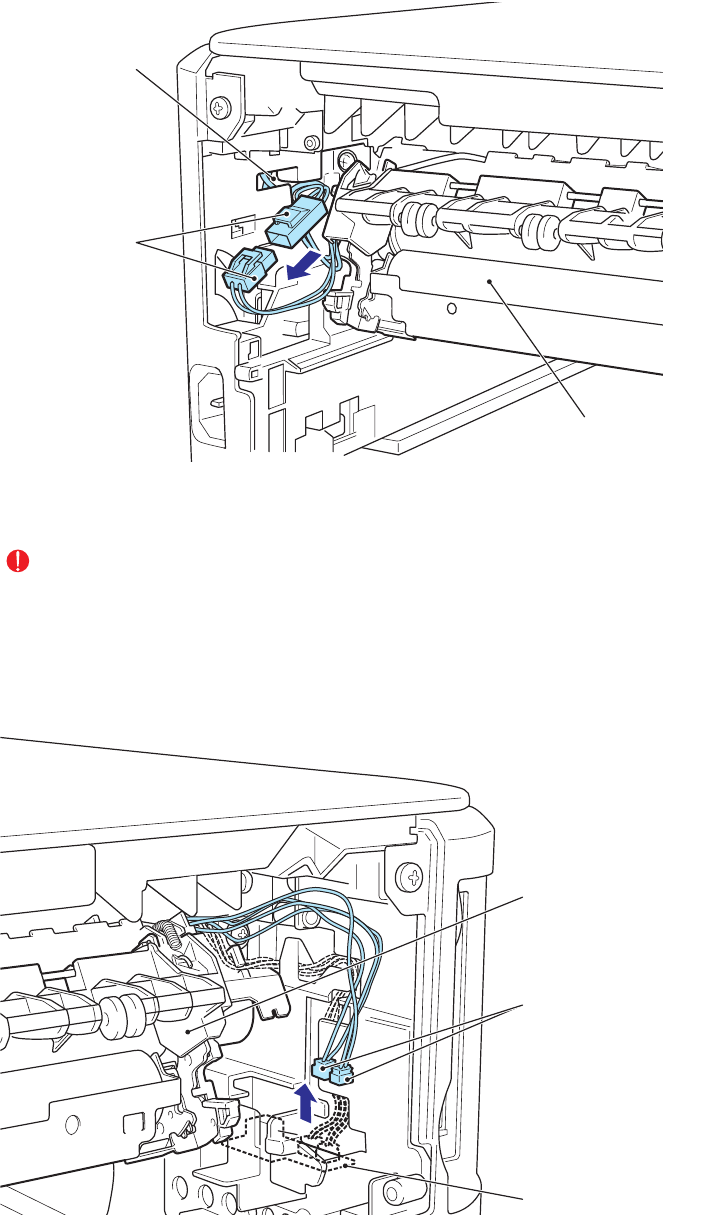

(1) Disconnect the Connector.
Fig. 3-16
CAUTION:
Pull out the Connector from the Housing part of the Main body left side.
(2) Disconnect the two Connectors from the Eject sensor PCB ASSY.
Fig. 3-17
Fuser unit
Connector
Housing part
Fuser unit
Eject sensor PCB ASSY
Connector
