3-30
Confidential
8.11 WIRELESS LAN PCB ASSY (only HL-2170W)
(1) Disconnect the Connector from the Wireless LAN PCB ASSY.
(2) Release the Hook to remove the Wireless LAN PCB ASSY from the Main body.

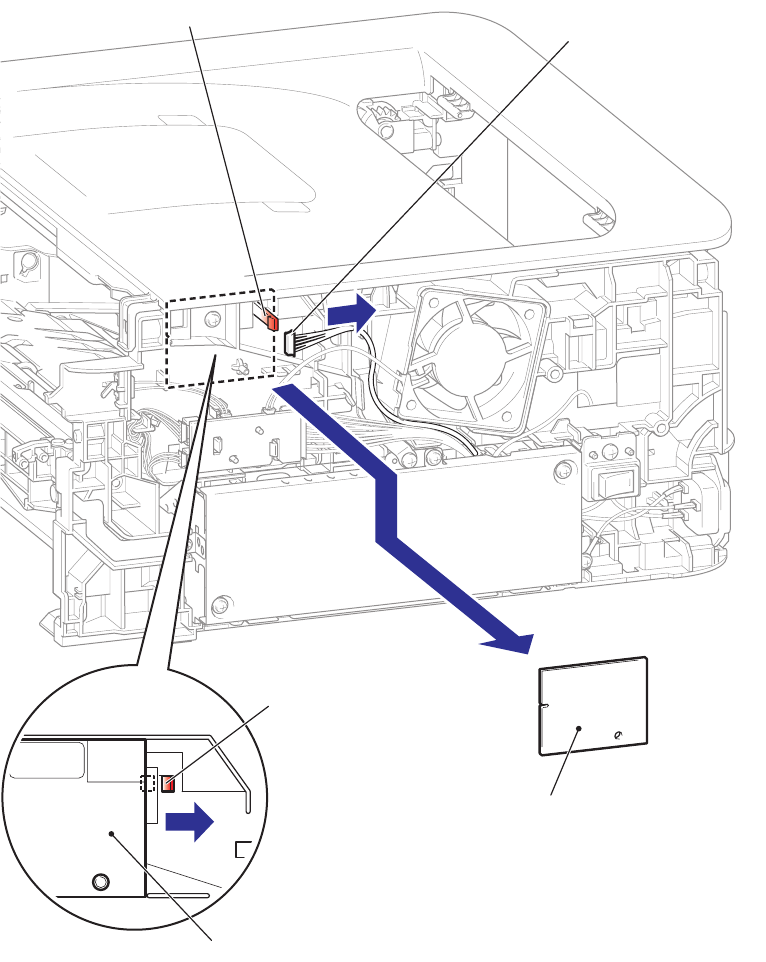

Fig. 3-24
Connector
Hook
Wireless LAN PCB ASSY
Wireless LAN PCB ASSY
Hook
1a
2a
1
1a
2b
