8.10 ROLLER HOLDER ASSY
(1) Release the Boss of the Roller holder ASSY from the Link arm.
(2) Press the Rib of the Paper feed frame, and the slide the Separation R shaft bush.
(3) Remove the Roller holder ASSY from the Main body.

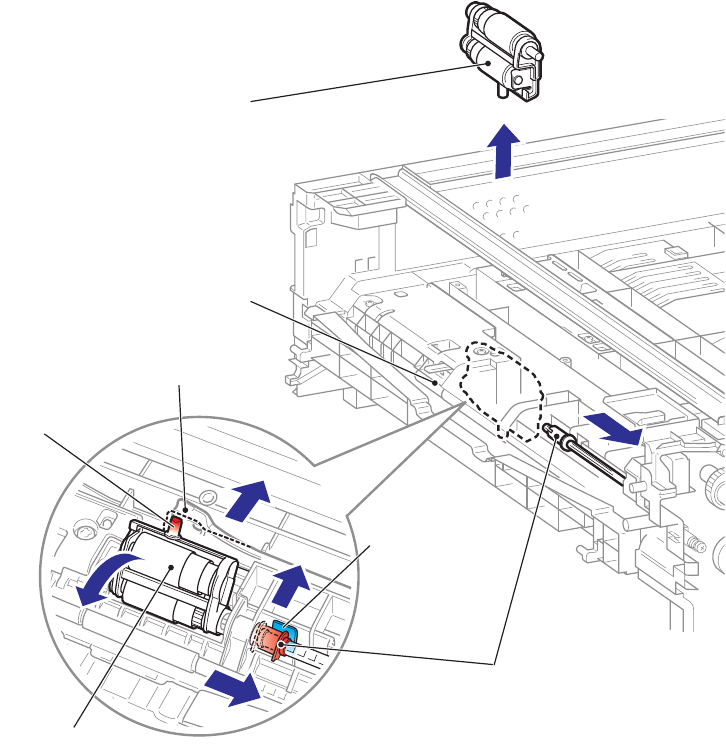

Fig. 3-22
Roller holder ASSY
Roller holder ASSY
Separation R shaft bush
Paper feed frame ASSY
Boss
Rib
(Paper feed frame
ASSY)
Link arm
1a
1b
2b
2b
1a
2a
2a
1b
2b
2b
3
<Bottom side>
