Chapter 2. Getting Started the BHT-7000 and System Mode
[5.7] Communications test
In System Mode, you may test the optical interface port and direct-connect interface
port.
Preparation for the optical interface test

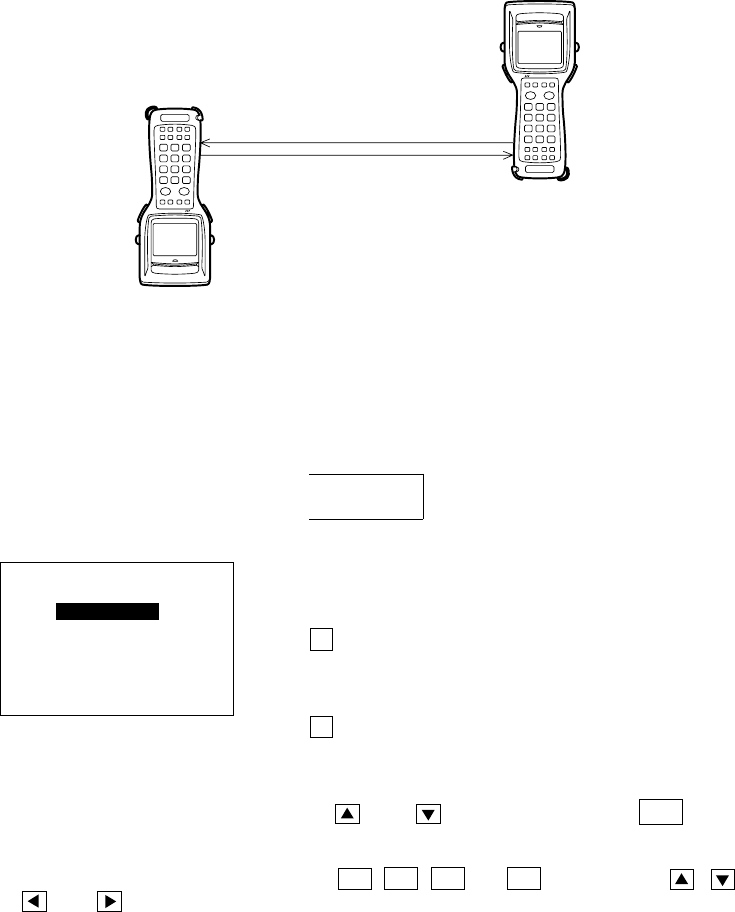

Arrange two BHT-7000s, one as a master station and the other as a slave station (to be
tested) with their IR ports facing each other as illustrated below. In this test, the slave
BHT-7000 transmits data to the master BHT-7000 and receives the data sent back from
the master BHT-7000.
Preparation for the direct-connect interface test
Arrange the 3-pole mini stereo plug as illustrated below and connect it to the direct-
connect interface port on the BHT-7000.
SD
RD
Selecting the "7:COMMUNICATION" on the TEST
menu calls up the screen shown at left.
1 OPTICAL : Switches to the MASTER/
SLAVE selection screen for
the optical interface test.
2 CONNECTOR : Tests the direct-connect inter-
face port.
Select a desired item by using the numerical keys
or
* and * keys, then press the ENT key.
TEST COMMUNICATION
1:OPTICAL
2:CONNECTOR
Master BHT-7000
Data
0.8 m or less
Slave BHT-7000
(to be tested)
* For BHT-7000s having a 26-key pad, use F5 , F6 , F7 and F8 keys instead of , ,
, and keys, respectively
