Technical Reference Guide
5.6.4 KEYBOARD/POINTING DEVICE INTERFACE CONNECTOR
These systems provide separate PS/2 connectors for the keyboard and pointing device. Both
connectors are identical both physically and electrically. Figure 5-6 and Table 5-16 show the
connector and pinout of the keyboard/pointing device interface connectors.

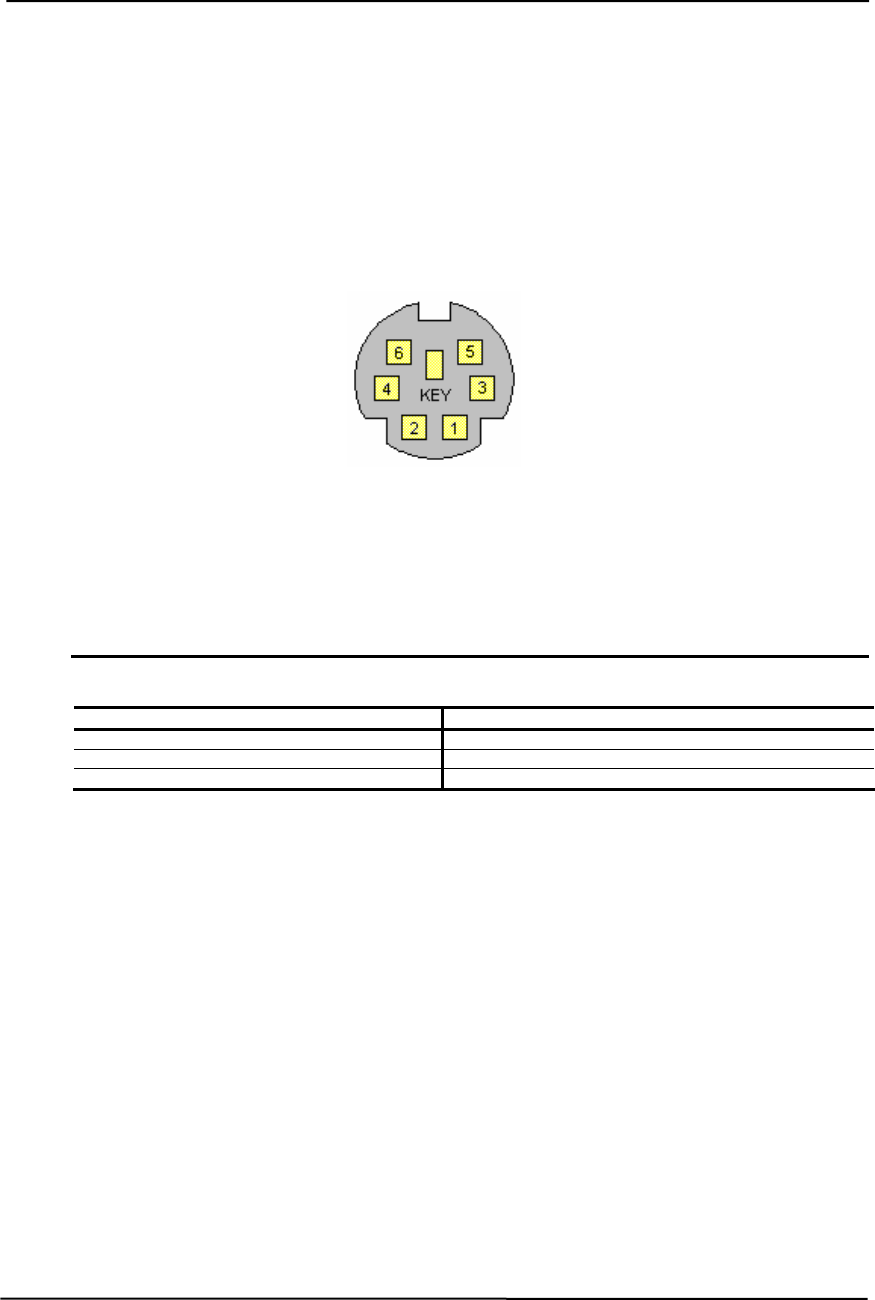

Figure 5-6. Keyboard or Pointing Device Interface Connector
(as viewed from rear of chassis)
Table 5–16. Keyboard/Pointing Device Connector Pinout
Table 5-16.
Keyboard/Pointing Device Connector Pinout
Pin
Signal
Description Pin Signal Description
1 DATA Data 4 + 5 VDC Power
2 NC Not Connected 5 CLK Clock
3 GND Ground 6 NC Not Connected
Compaq D315 and hp d325 Personal Computers
Featuring the AMD Athlon XP Processor
Second Edition - April 2003
5-21
