Chapter 6 Integrated Graphics Subsystem
Compaq D315 and hp d325 Personal Computers
Featuring the AMD Athlon XP Processor
Second Edition - April 2003
6-6
6.6 VGA MONITOR CONNECTOR
The D315 model provides a standard VGA connector (Figure 6-3) for attaching an analog video
monitor. The D325 model provides two VGA connectors.
1 2
3
4
6
7 8
15
14 13 12
11
10
5
9
9

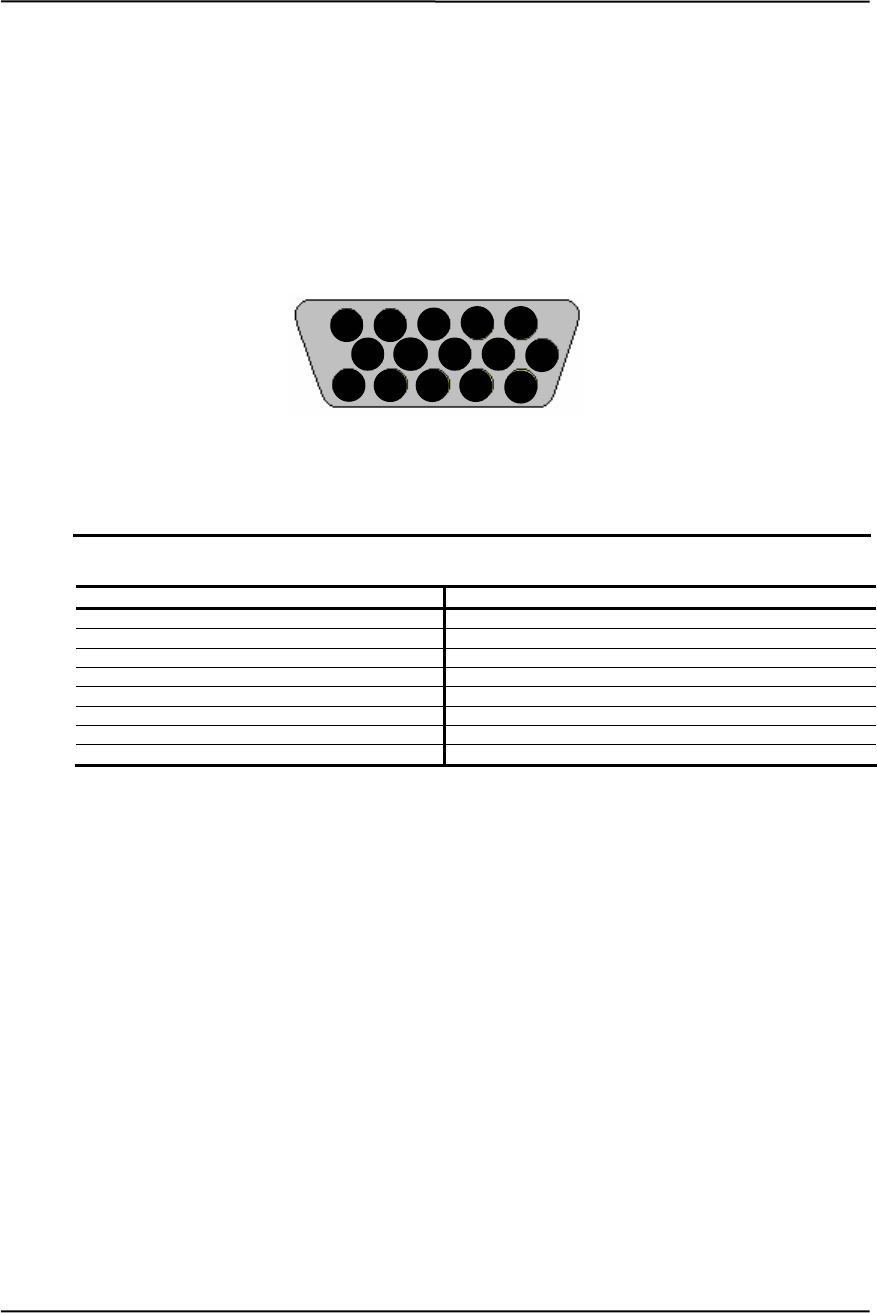

Figure 6-3. VGA Monitor Connector, (Female DB-15, as viewed from rear).
Table 6-3. DB-15 Monitor Connector Pinout
Table 6-3.
DB-15 Monitor Connector Pinout
Pin
Signal
Description Pin Signal Description
1 R Red Analog 9 PWR +5 VDC (fused) [1]
2 G Blue Analog 10 GND Ground
3 B Green Analog 11 NC Not Connected
4 NC Not Connected 12 SDA DDC2-B Data
5 GND Ground 13 HSync Horizontal Sync
6 R GND Red Analog Ground 14 VSync Vertical Sync
7 G GND Blue Analog Ground 15 SCL DDC2-B Clock
8 B GND Green Analog Ground -- -- --
NOTES:
[1] Fuse automatically resets when excessive load is removed.
