Technical Reference Guide
D.5 NETWORK CONNECTOR

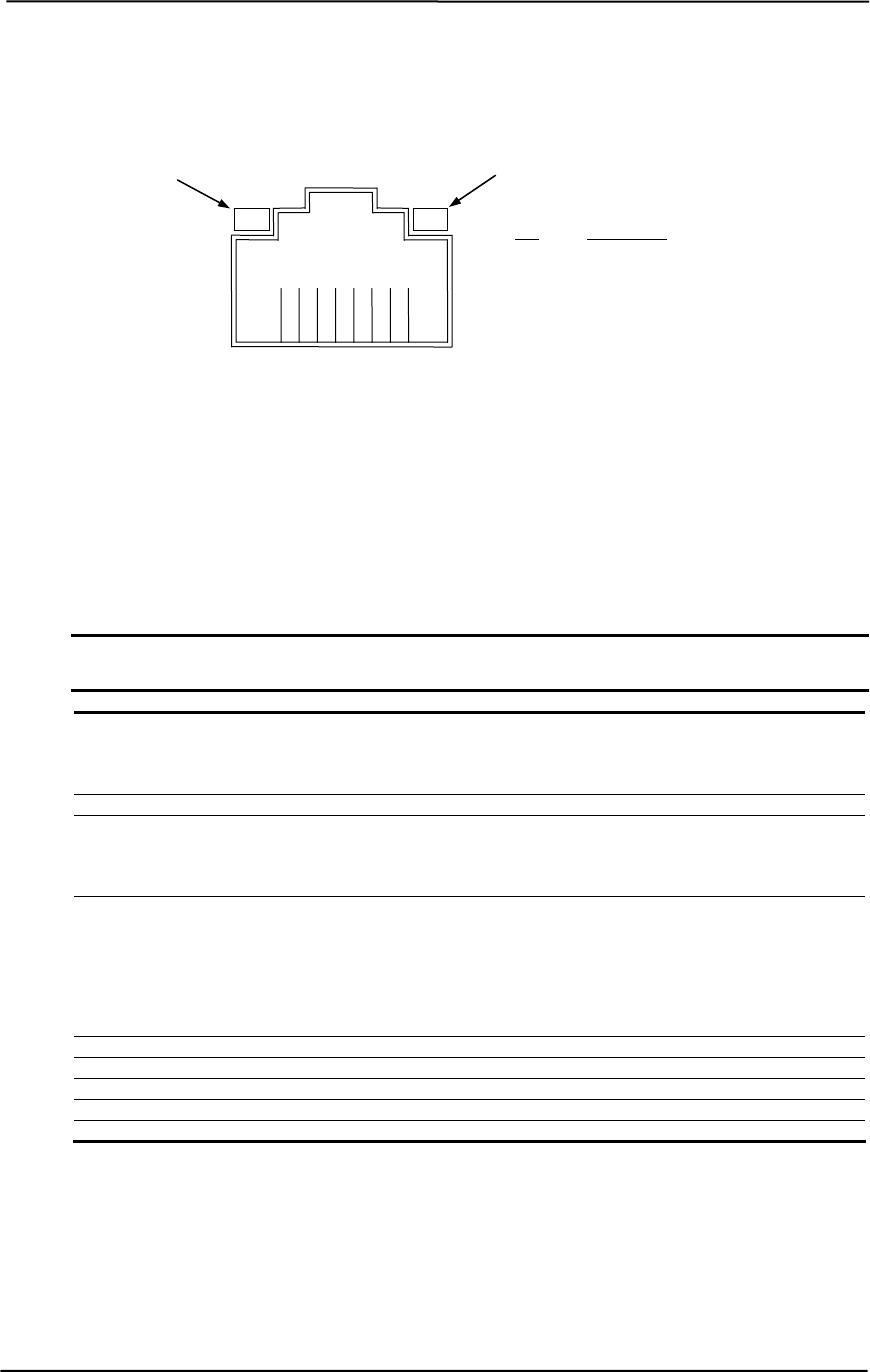

The figure below shows the RJ-45 connector used for the NIC interface. This connector includes
the two status LEDs as part of the connector assembly.
Activity LED
Speed LED
Pin Description
1 Transmit+
2 Transmit-
3 Receive+
6 Receive-
5
6
7
8
3
4
2
1
Figure D-3. Ethernet TPE Connector (RJ-45, viewed from card edge)
D.6 ADAPTER SPECIFICATIONS
Table D-3. Adapter Operating Specifications
Table D-3.
Adapter Specifications
Parameter
Modes Supported 10BASE-T half duplex @ 10 MB/s
10Base-T full duplex @ 20 MB/s
100BASE-TX half duplex @ 100 MB/s
100Base-TX full duplex @ 200 MB/s
Encryption Standards (82550 only) DES/3DES, HMAC SHA-1, MD5
Standards Compliance IEEE VLAN (802.1A)
IEEE 802.2
IEEE 802.3 & 802.3u
IEEE Intel priority packet (801.1p)
OS Driver Support MS Windows 95,98, 2000, XP, Mandrake Linux 8.2
MS Windows NT 3.51 & 4.0
Novell Netware 3.11, 3.12, & 4.1x; 5 Server
Sunsoft Solaris
SCO UnixWare
Open Desktop
OpenServer
Boot ROM Support Intel PRO/100 Boot Agent (PXE 2.0, RPL)
F12 BIOS Support Yes
Bus Inteface PCI 2.2
Power Management Support APM, ACPI, PCI Power Management Spec.
Power Comsumption 0.750 mW (max)
hp/Compaq Personal Computers
Changed - April 2003
D-7
