4-61 4059 Service Manual
4059-XXX
Upper Front Cover Hinge Assembly
1. Remove the upper front cover.
2. Remove the laser assembly cover.

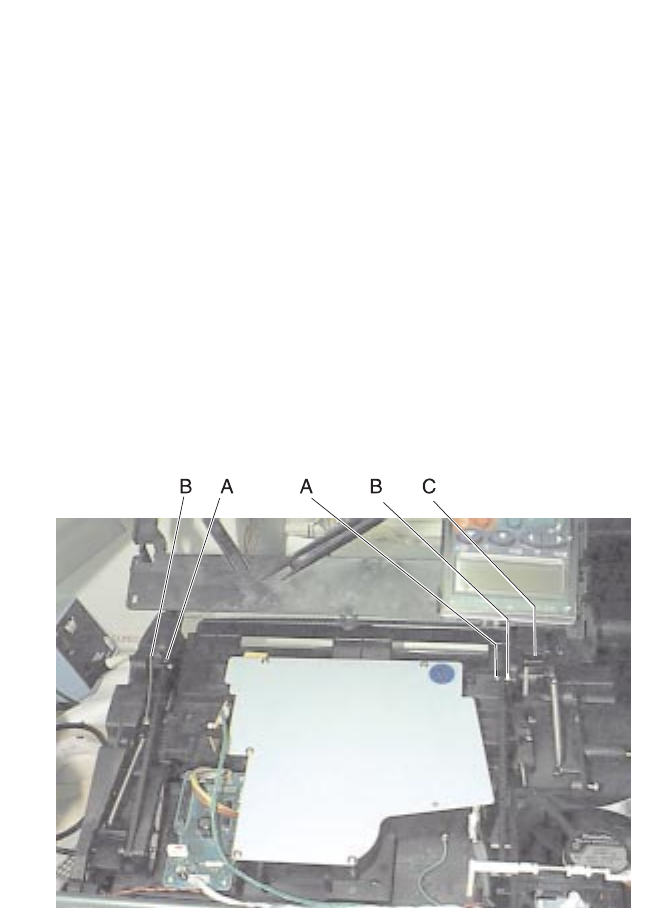

3. Remove the C-clips (A) from the upper front cover hinge
assembly left and right hinge pins and remove the pins. Note
the pin orientation and the C-clip location on the inside of each
hinge.
4. Detach the two springs (B) from the upper front cover hinges.
5. Disconnect the operator panel cable from the operator panel
assembly.
6. Raise the upper front cover hinge assembly to a position that
lets you lift the left pivot arm from the mounting bracket (C).
7. Lift the left pivot arm from the bracket and move the upper cover
hinge assembly toward the left to clear the right upper cover
pivot arm from the mounting bracket.
8. Remove the upper front cover hinge assembly.
