Chapter 4 Managing the Passport 8683POS Module 67
Using the Passport 8683POS Module

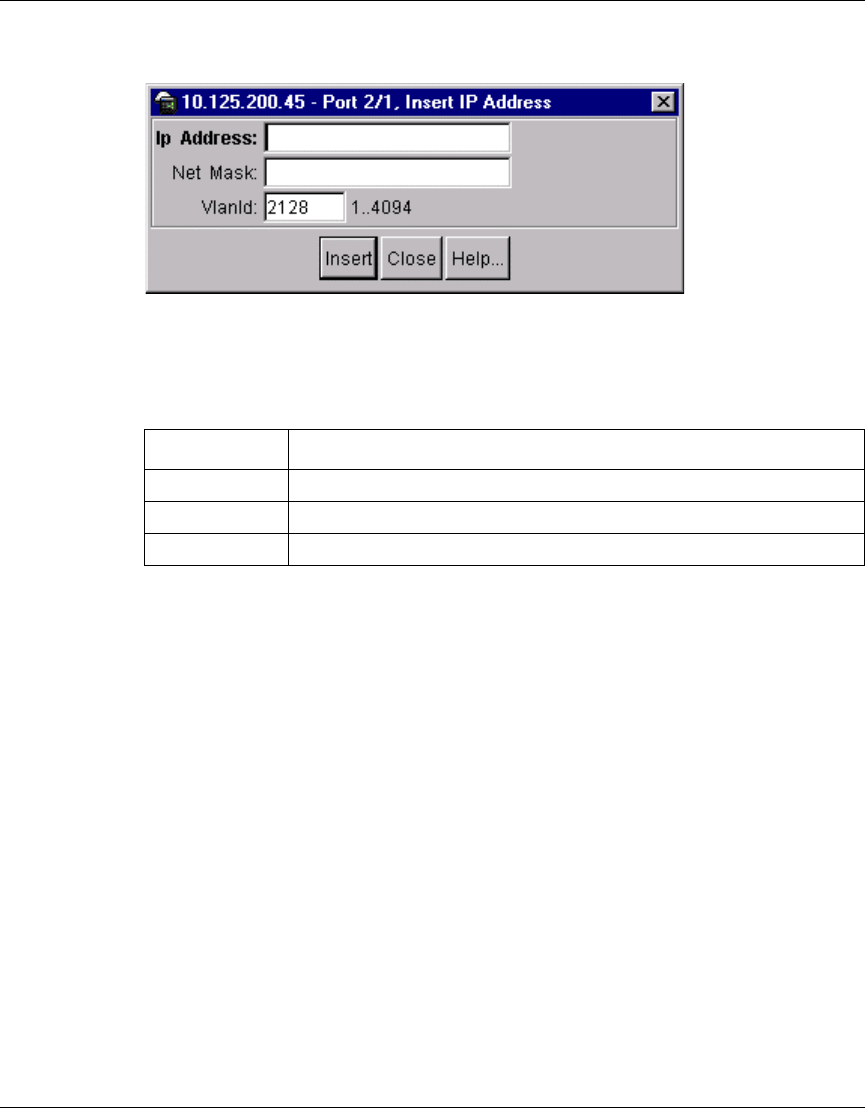

Figure 18 Port, Insert IP Address dialog box
Table 14 describes the Port, Insert IP Address dialog box items.
e Type the IP address and click Insert.
The IP address displays in the table in the IP Address tab (Figure 17).
7 Click Apply.
8 To enable the port on both Passport 8683POS Modules, click the Interface tab
and, in the AdminStatus field, click up.
9 Click Apply.
Configuring IP routing using the CLI
To configure the Passport 8683POS Modules for IP routing using the CLI:
1 To disable the selected port on both Passport 8683POS Modules, enter:
config pos <ports> state disable
2 To disable bridging, enter:
config pos <ports> bridge-admin-status close
Table 14 Insert IP Address dialog box items
Item Description
Ip Address IP address to which the entry’s addressing information pertains.
Net Mask The subnet mask associated with the IP address of the entry.
VlanId Unique VLAN identifier.
