9.2.14. Assembling the DU Lid Unit
1. Fix the DU Lid Angle and the DU Lid using the 7 Screws.
<K14-9>
Screws <K14-9> : DXQT2+D25FNL
Cable Holder Cushion
Cable
Step 14
Step 12
Step 13

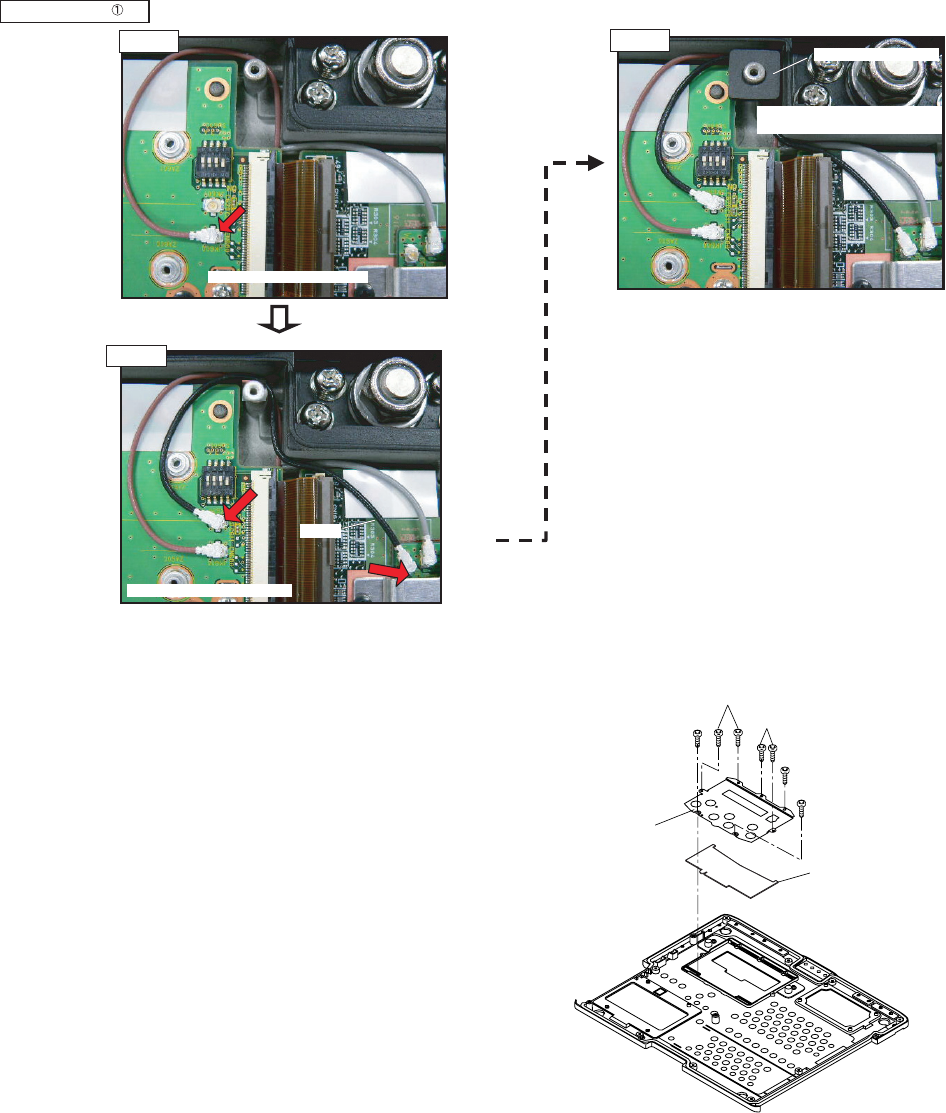

Cable Process 3/3
Connect the brown antenna cable.
Connect the additional cable (black).
Insert it into the boss.
(Push it downward from the top of boss.)
<K14-9>
<K14-9>
DIMM Lid Angle
DU Lid
<K14-9>
<K14-9>
<K14-9>
