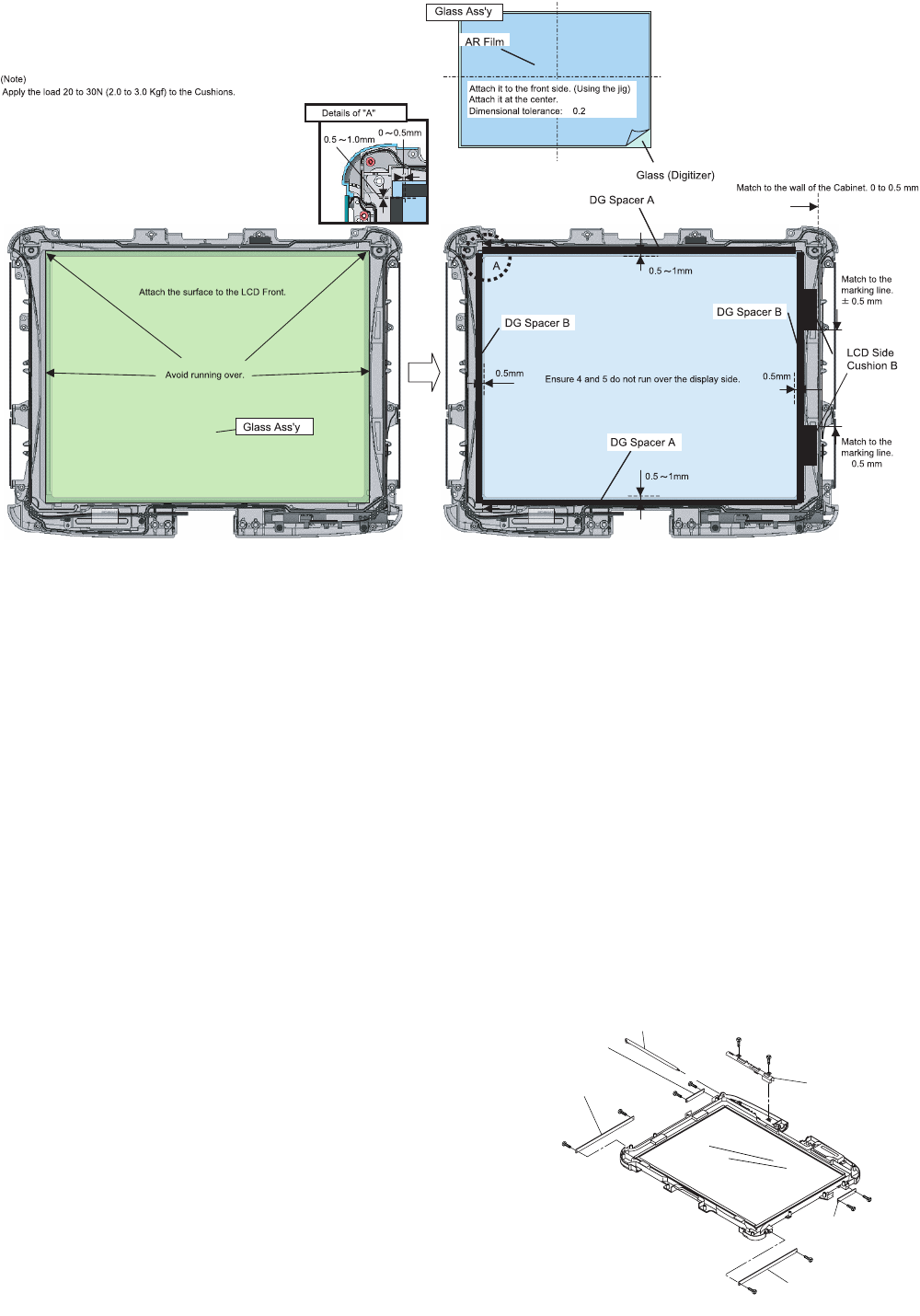

n Assembly of Glass (Applicable Model : Digitizer Model)
9.2.3. Assembling the WWAN Main Antenna PCB, LAN-Main BT Antenna PCB, LAN AUX
Antenna PCB, WWAN AUX Antenna PCB and Pen holder
1. Fix the Pen Holder using the 2 Screws. <K10-1-13>
2. Attach the Pen.
3. Fix the WWAN AUX Antenna PCB using the 2 Screws.
<N1>
4. Fix the LAN AUX Antenna PCB using the 2 Screws. <N1>
5. Fix the LAN-Main BT Antenna PCB using the 2 Screws.
<N1>
6. Fix the WWAN Main Antenna PCB using the 2 Screws.
<N1>
Screws <N1> : DFHE5025XA
Screws <K10-1-13> : DRHM5025YAT
<K10-1-13>
<N1>
<N1>
<N1>
<N1>
<K10-1-13>
Pen Holder
LAN Aux
Antenna PCB
WWAN Main
Antenna PCB
Pen
WWAN Aux
Antenna PCB
<N1>
<N1>
<N1>
<N1>
LAN-Main
BT Antenna PCB
