9-6

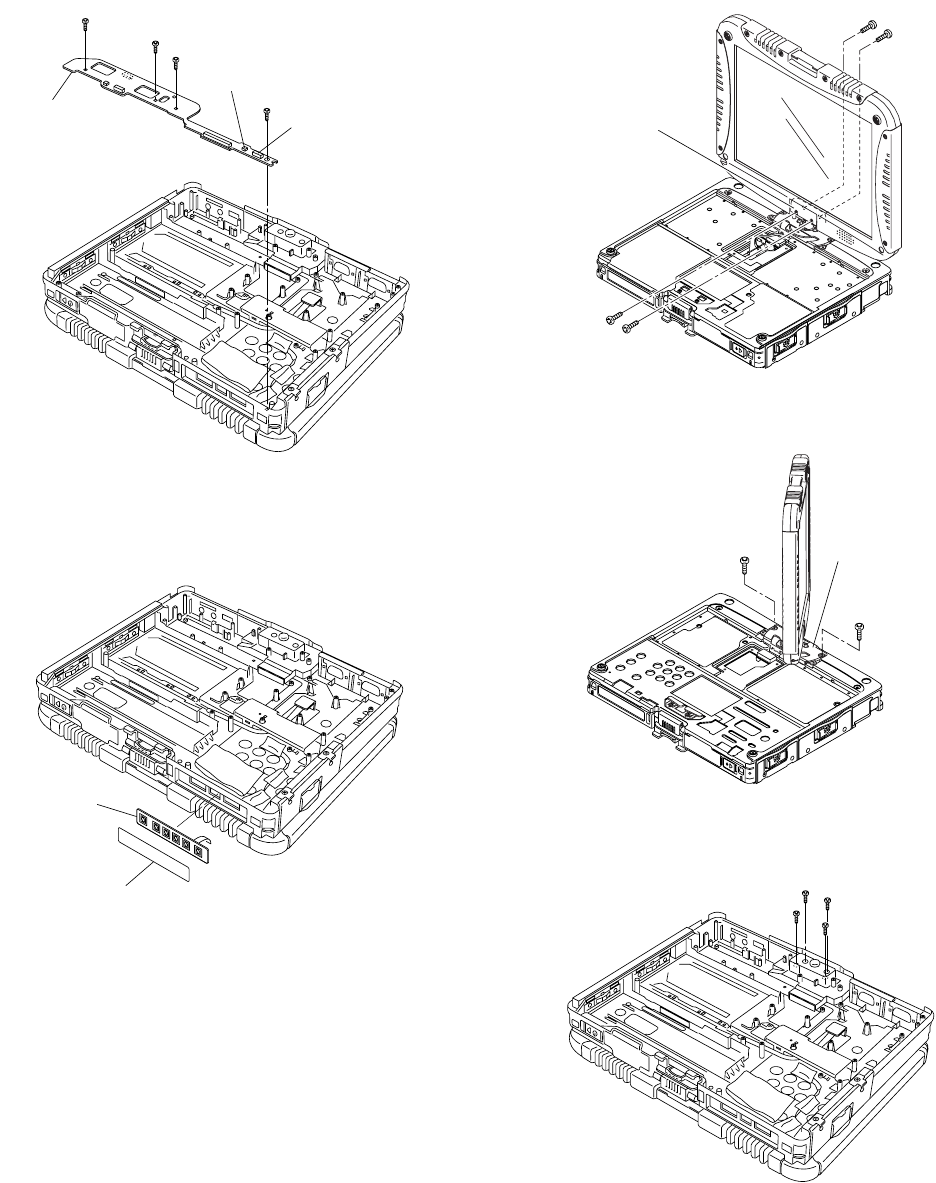

9.1.13. Removing Pad PCB and SW PCB
1. Disconnect the 2 Cables from the 2 Connectors
(CN805,CN807).
2. Remove the 4 Screws <N1>.
3. Remove the Pad PCB.
4. Remove the Operation Sheet and the SW PCB.
Screws <N1> : DFHE5025XA
9.1.14. Removing the Display unit
1. Remove the 4 Screws <N1>.
2. Remove the LCD Hinge Cover.
3. Display unit is half-rotated and removes the 2 Screws
<N9>.
4. Remove the 4 Screws <N18>.
5. Turn the computer over.
6. Remove the Display Unit.
Screws <N1> : DFHE5025XA
Screws <N9> : DRSB2+5FKL
Screws <N18> : DXYN4+J7FNL
<N1>
<N1>
<N1>
<N1>
Pad PCB
Connector(CN807)
Connector(CN805)
SW PCB
Operation Sheet
<N1>
<N1>
LCD Hinge Cover
<N1>
<N1>
<N9>
<N9>
Hinge Cover
<N18>
<N18>
<N18>
<N18>
