9-15

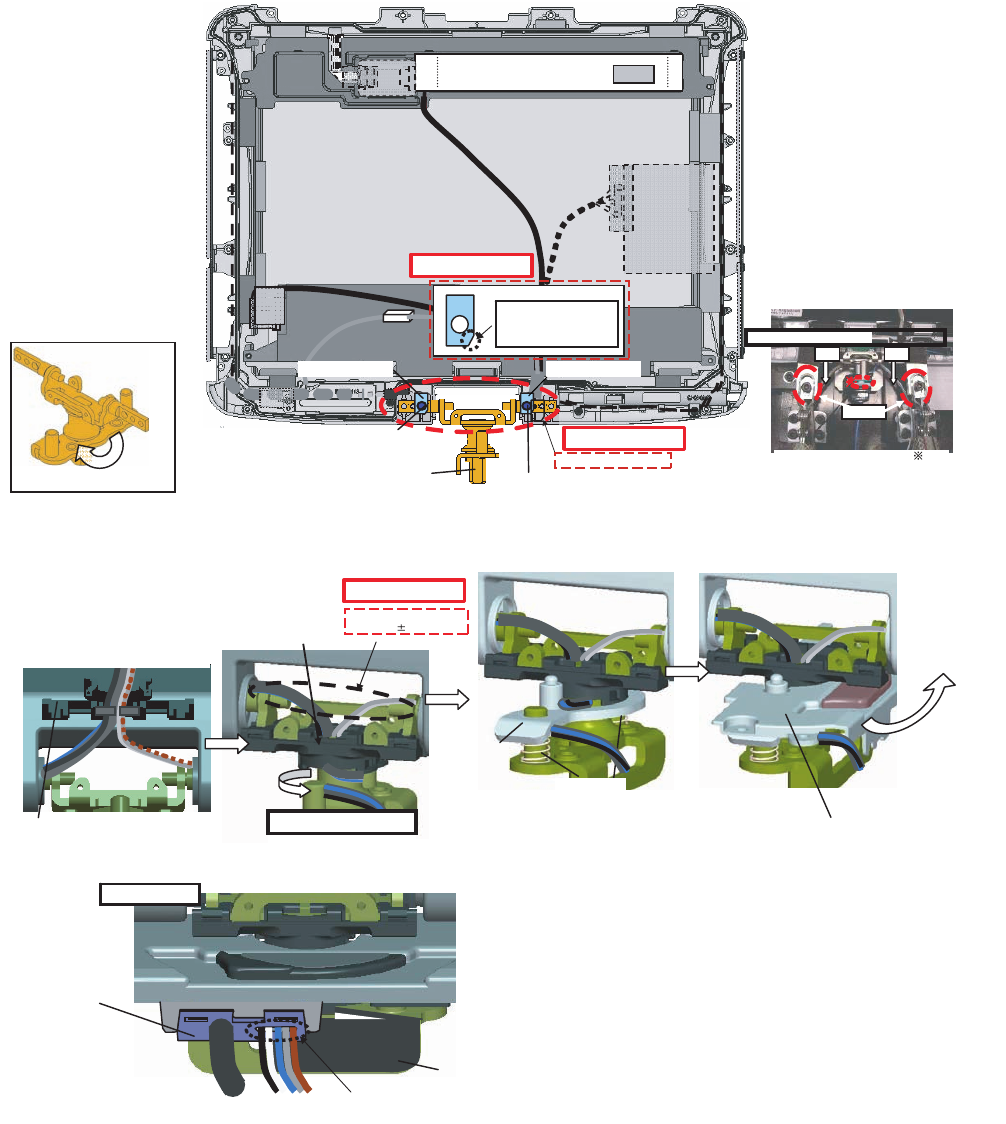

n Assembly of LCD Hinge
n Line Processing of Antenna Cable and LCD Cable
If you arrange the Cable in the area,
you do not need to use the fixing jig.
Initial Condition
of LCD Hinge
Rotation Direction
Tighten
FixFix
Using the fixing jig when fixing the Hinge
Cable Hold PlateCable Hold Plate
Screw
Avoid catching the Cable (when repairing or when not using the jig).
Temporarily fix the both sides ("A") of the Hinge using the Screw, and fix the Cable Hold Plate.
After fixing the Cable Hold Plate, remove the screws from the both sides ("A").
LCD Hinge
Screw
Ensure the "C" side comes
to the lower right corner
when viewing from above.
Safety Working
Safety Working
Avoid catching the Cable.
LCD Rear side
Cable Holder
Lock Spring
Lock Plate Assy
Hinge Cover Assy
LCD Cable Holder
Protect Sheet
Process in the order of black/white/blue/gray/brown cables from the left.
(This process does not need if there are not cables.)
Joint it to the Hinge Cover hook after
connecting the cable to the notch.
Pass the Cables through it, and then fix it to the Hinge.
(Fix directly the other side.)
For fixing, hold the Hinge parallel to the LCD.
Turn the Cable
360 degree.
You will hear the sound when they are firmly jointed.
Allow some cable margin.
Margin: 22 3 mm
Safety Working
Rotation Direction
Insert the Lock Spring (the bottom diameter is shorter),
and then insert the Lock Plate from above.
Wind the Antenna cable first.
