9-34

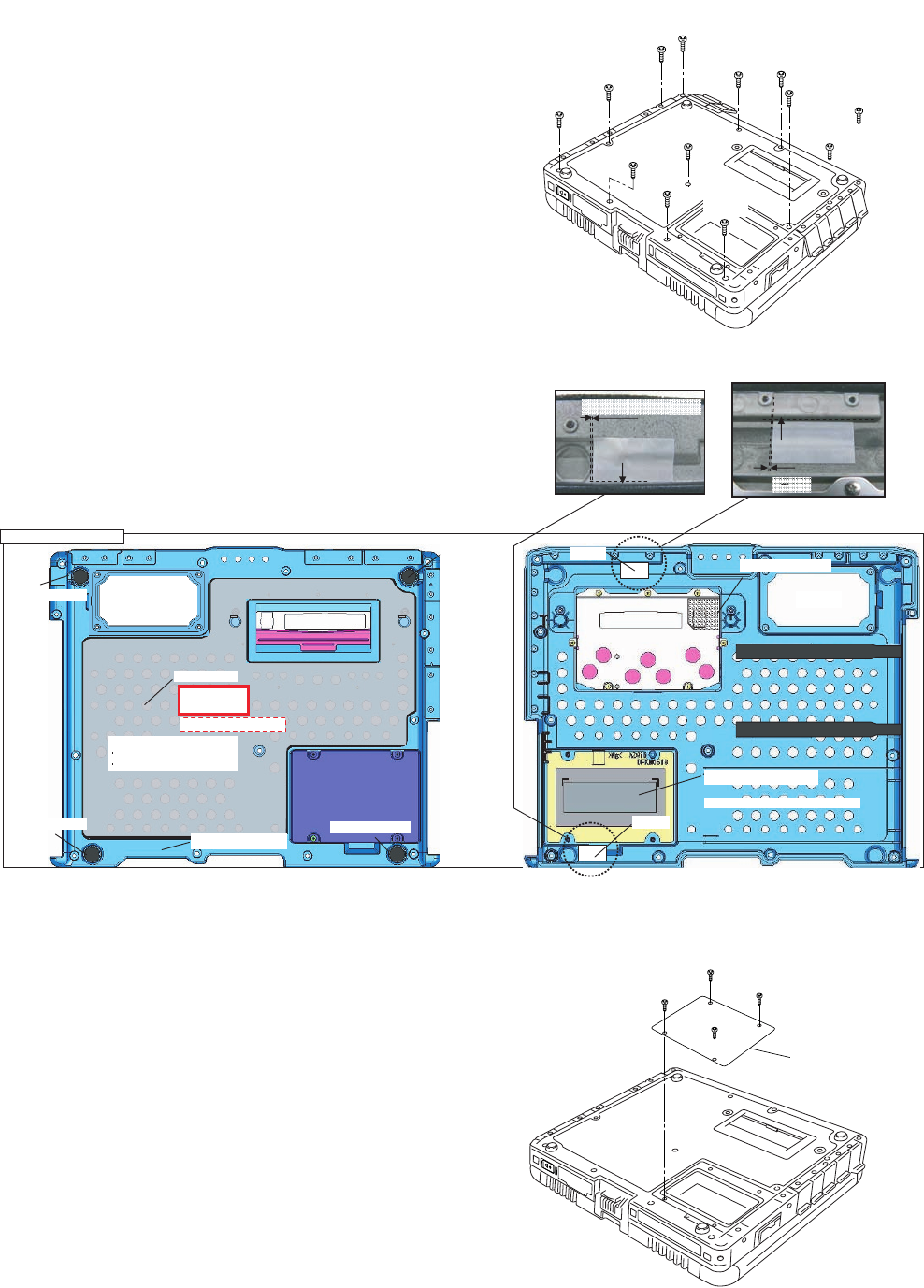

9.2.15. Setting the Rear Cabinet
1. Fix the Rear Cabinet on the Computer using the 13
Screws. <N10>
2. Close the Lid Covers.
Note:
Tighten the Screws in the numbered order (No1 to No13).
Screws <N10> : DRHM0061ZA
n Cautions for Setting the Rear Cabinet
9.2.16. Setting the DIMM Lid Ass'y
1. Fix the DIMM Lid Ass'y using the 4 Screws. <K14-8>
Screws <K14-8> : DRHM5025YAT
<N10>
:No.3
<N10>
:No.11
<N10>
:No.12
<N10>
:No.2
<N10>
:No.6
<N10>
:No.8
<N10>
:No.13
<N10>
:No.9
<N10>
:No.7
<N10>
:No.5
<N10>
:No.1
<N10>
:No.4
<N10>
:No.10
Bottom Case Ass’y
Safety critical component
Match to the wall.
0 to 1mm
Match to the wall.
0 to 1mm
Note for attachment
Avoid running over the frame.
Avoid air leaking into it.
Bottom Case Assy
Bottom Rubber
Bottom Rubber
Bottom Rubber
Bottom Rubber
DIMM Thermal Sheet
Tape
Tape
Rated Label
Potre Blind Sheet
0 1mm
Match to the circles. 0 to 1mm
Match to the marking line and attach it.
(Note) Arrow without specified measurement: 0 to 0.5 mm
Important Parts
for Safety
<K14-8>
<K14-8>
<K14-8>
<K14-8>
DIMM Lid Ass’
y
