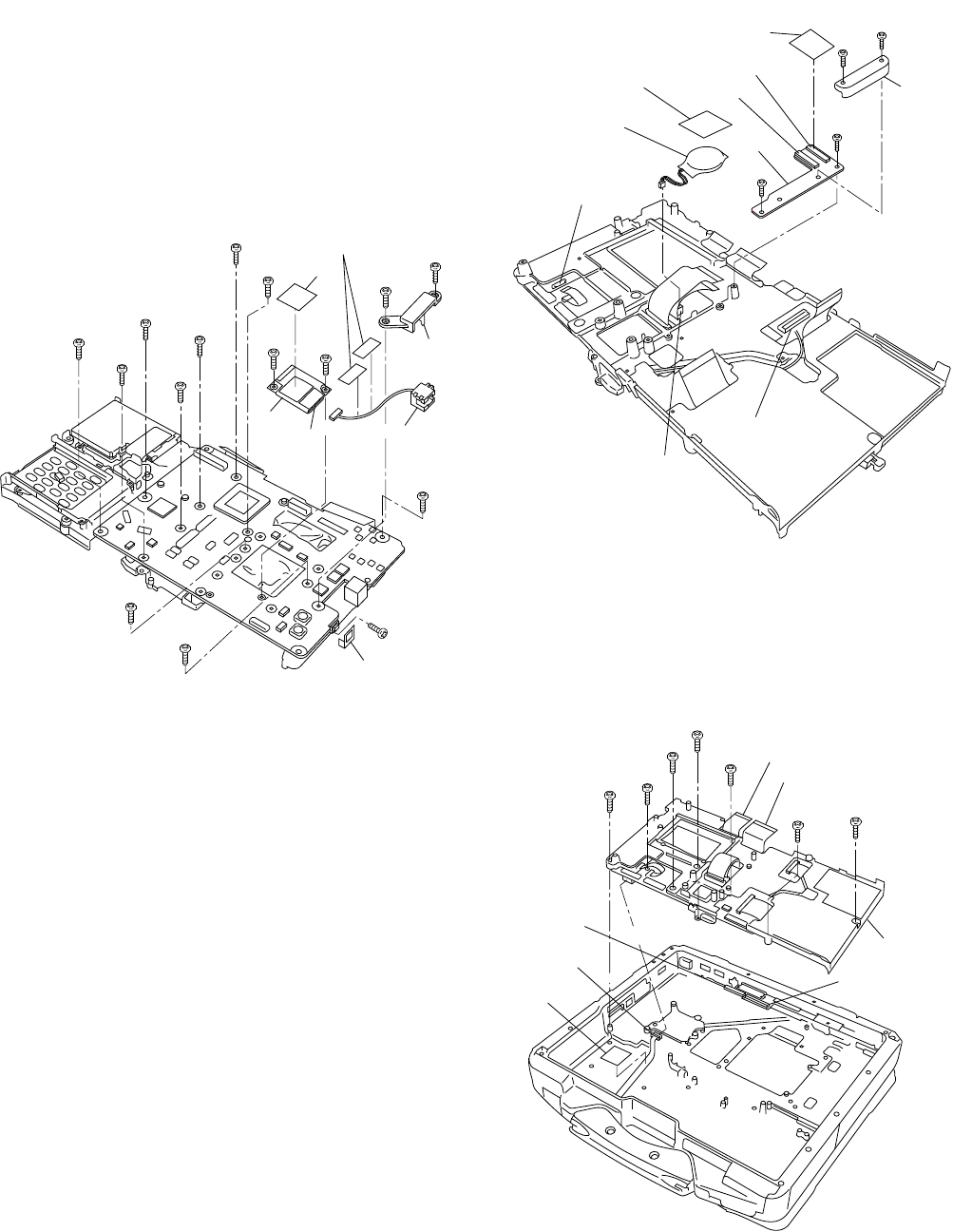

9.2.10. Setting the Main PCB
1. Fix the Main PCB using the 8 Screws <N32> (No1 to
No8), Screw <N6> (No1 to No2) and Screw <N11>.
2. Set the Modem Cable.
3. Connect the Cable to the Connector (J2) and fix the
MDC.
4. Attach the Tape.
5. Attach the 1394 Sheet.
6. Fix the MDC using the 2 Screws <N11> (No1 to No2).
7. Fix the Modem LAN Case using the 2 Screws <N32>
(No1 to No2).
8. Attach the 2 Modem Cable Sheets.
9. Connect the Cable to the Connector (CN4,CN11).
10. Attach the Tape.
11. Attach the Coin Battery.
12. Connect the Cable to the Connector (CN19).
13. Attach the Coin Battery Cushion.
14. Fix the MP PCB and MP Guide using the 2 Screws <N6>
(No1 to No2) and 2 Screws <N21> (No1 to No2).
15. Connect the Cable to the Connector. (CN400,CN401)
16. Set the Main Chasis on the Computer.
17. Attach the Tape.
18. Connect the Cable to the Connector (CN31) and Attach
the Pet Tape.
19. Connect the Cable to the Connector (CN700,CN701).
20. Fix the Main Chasis using the 6 Screws <N16>
(No1 to No6)
21. Fix the Main Chasis using the Screw <N18>.
