9-37

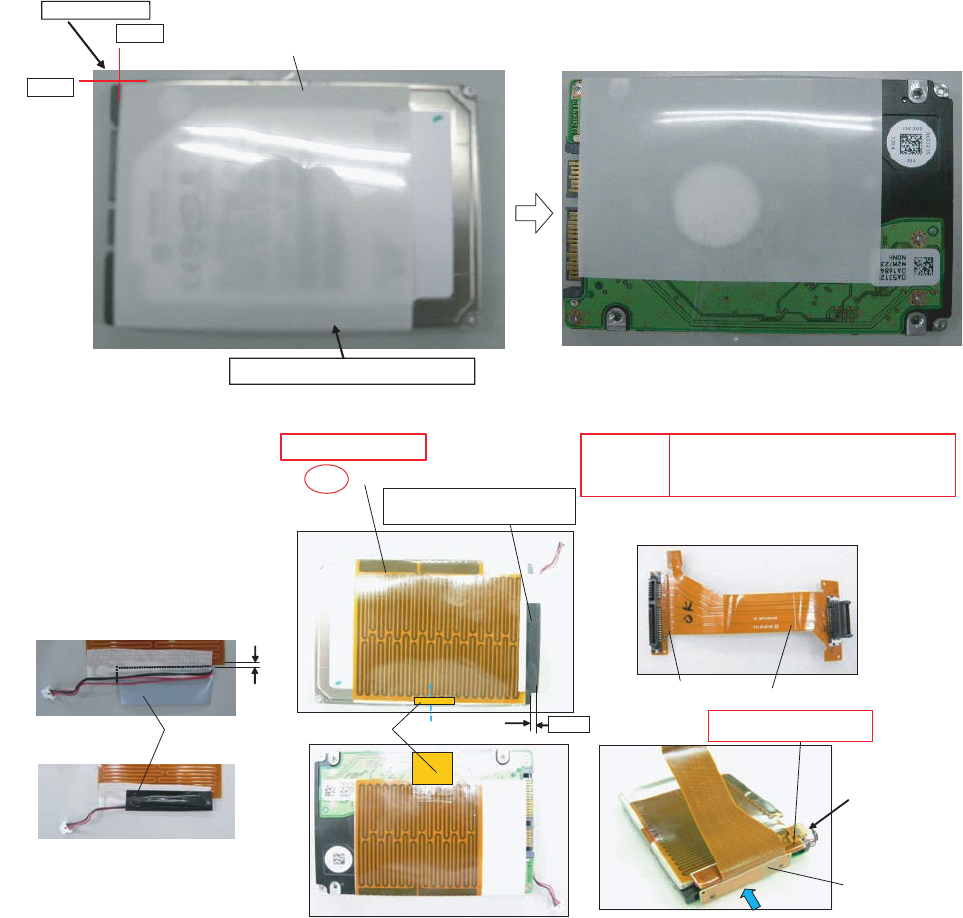

Preparation oh HDD ASS’Y
* Notes:
1. Apply the load when attaching the parts. 20N to 30N (2 to 3Kgf)/cm2
Fit to the corner.
HDD INS SHEET
0 – 1
0 – 1
Turn it to the board side (back side).
Safety Working
Insert the
HDD FPC Ass’y
Connect the
Connector
Valley Fold
Mountain Fold
1. Do not gouge when inserting and removing
the socket.
2. Do not drop HDD or add any impacts on it.
3. Insert CN into the end firmly.
4. Apply the load when attaching the parts.
20N to 30N (2 to 3Kgf)/cm2
Attach it pushing the shaded
part not to push the fuse.
1 – 1
0~1
PET Tape
Hwater Fixed Tape
Center
HEATER
CAUTION
S1:Insulation S2:Bitten S3:Sharp Edge
S4:Part No. Check S5:Other
S4
Do not bend the bending
part of Heater
