9.2.15. Setting the W-LAN Module, GPS PCB and Bluetooth PCB
1. Set W-LAN Module.
2. Fix the W-LAN Module using the 2 Screws <N11>
(No1 to No2).
3. Connect the Antenna Cables to the Connector on W-LAN
Module.
4. Fix the GPS BT Angle and GPS PCB using the 2 Screws
<N11> (No1 to No2).
5. Connect the Cable to the Connector on GPS PCB.
6. Fix the GPS Ass’y using the 4 Screws <N12>
(No1 to No12).
7. Connect the Cable to the Connector (CN25).
Screws <N11>: DFHE5025XA
Screws <N12>: DXQT2+F3FNL
Note:
Tighten the Screws in the numbered order (No1 to No2).
Tighten the Screws in the numbered order (No1 to No2).
Tighten the Screws in the numbered order (No1 to No12).

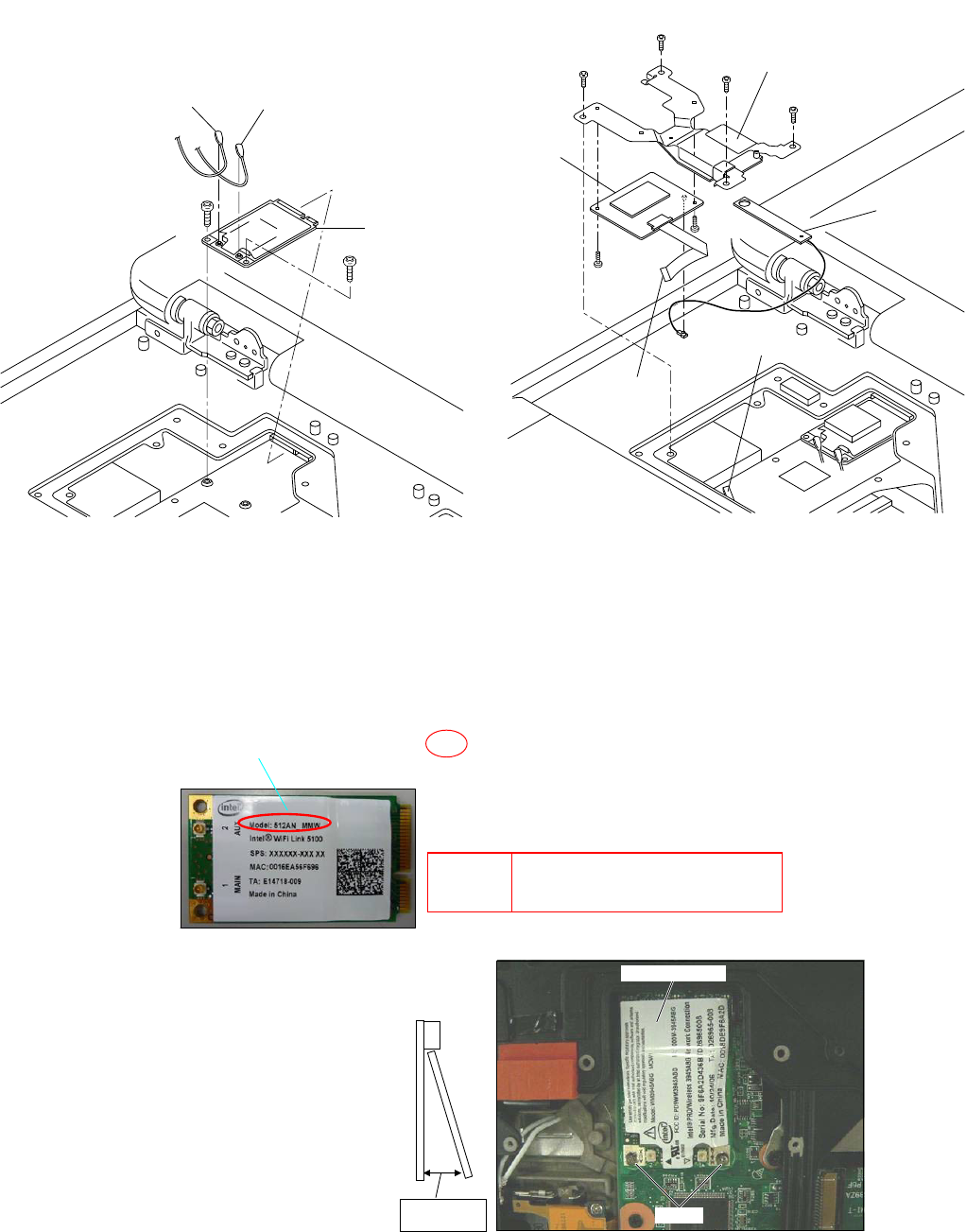

Preparations and assembly of W-LAN Module
<N11>
<N11>
Antenna Cable(black)
Antenna Cable(white)
W -LAN
Module
GPS PCB
Bluetooth
PCB
Connector(CN25)
<N11>
<N11>
No.1
No.2
GPS BT Angle
<N12>
No.3
<N12>
<N12>
<N12>
No.1
No.4
No.2
to Connector
(CN25)
S4
How to discriminate the Wireless LAN card
For North America and Europe N5HZC0000042
ޟ512AN MMW ޠConfirm the printing.
CAUTION
S1:Insulation S2:Bitten S3:Sharp Edge
S4:Part No. Check S5:Other
Torque of tightening screw :0.19 ± 0.02N·m(Ṑ2.0 ± 0.2kgf·cm)
Screw
W-LAN Module
Insert within
8 mm or less
