Preparation for Installation 4-16
II L 00

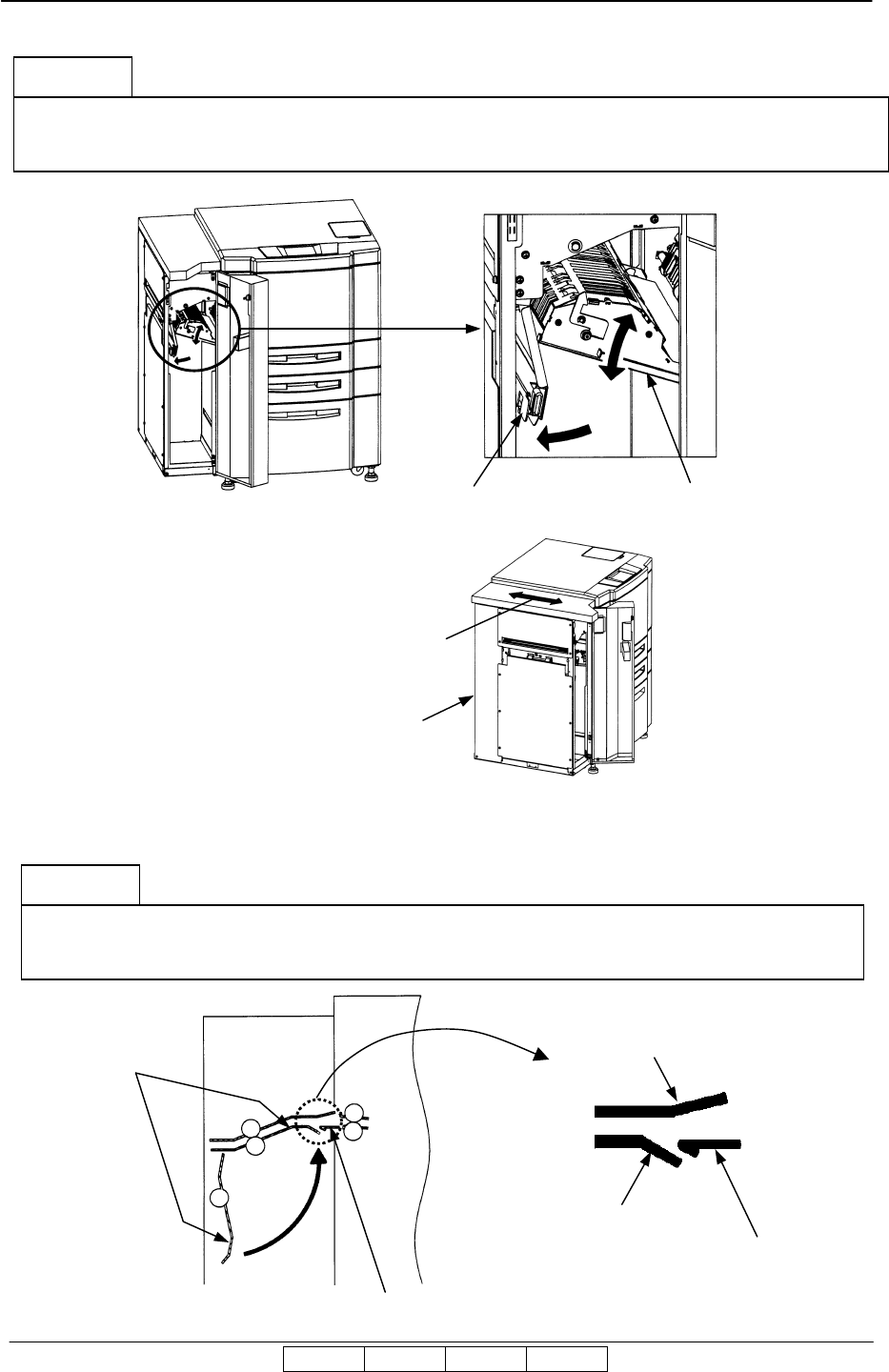

(2) Install the Transit Pass Unit Type DDP by using the four M4x8 Screws.
(3) Close the Lower paper guide and Front Cover.
Open and close the SB Cover.
When the SB cover does not open, adjust Transit Pass Unit Type DDP to an arrow direction.
CHECK
SB Cover
Lower Paper Guide
Adjust arrow direction
Transit Pass Unit Type DDP
Open and close the Lower paper guide. When Lower Paper Guide and SB Cover Paper
Guide collide, repair it by hand because SB Cover Paper Guide may transform it.
CHECK
Lower Paper Guide
SB Cover Paper Guide
Upper Paper Guide
Lower Paper Guide
SB Cover Paper Guide
