Preparation for Installation 4-22
II L 00
4) Connecting the two connectors (3pin and 14pin) to the HPxxx Ass’y of the Engine.

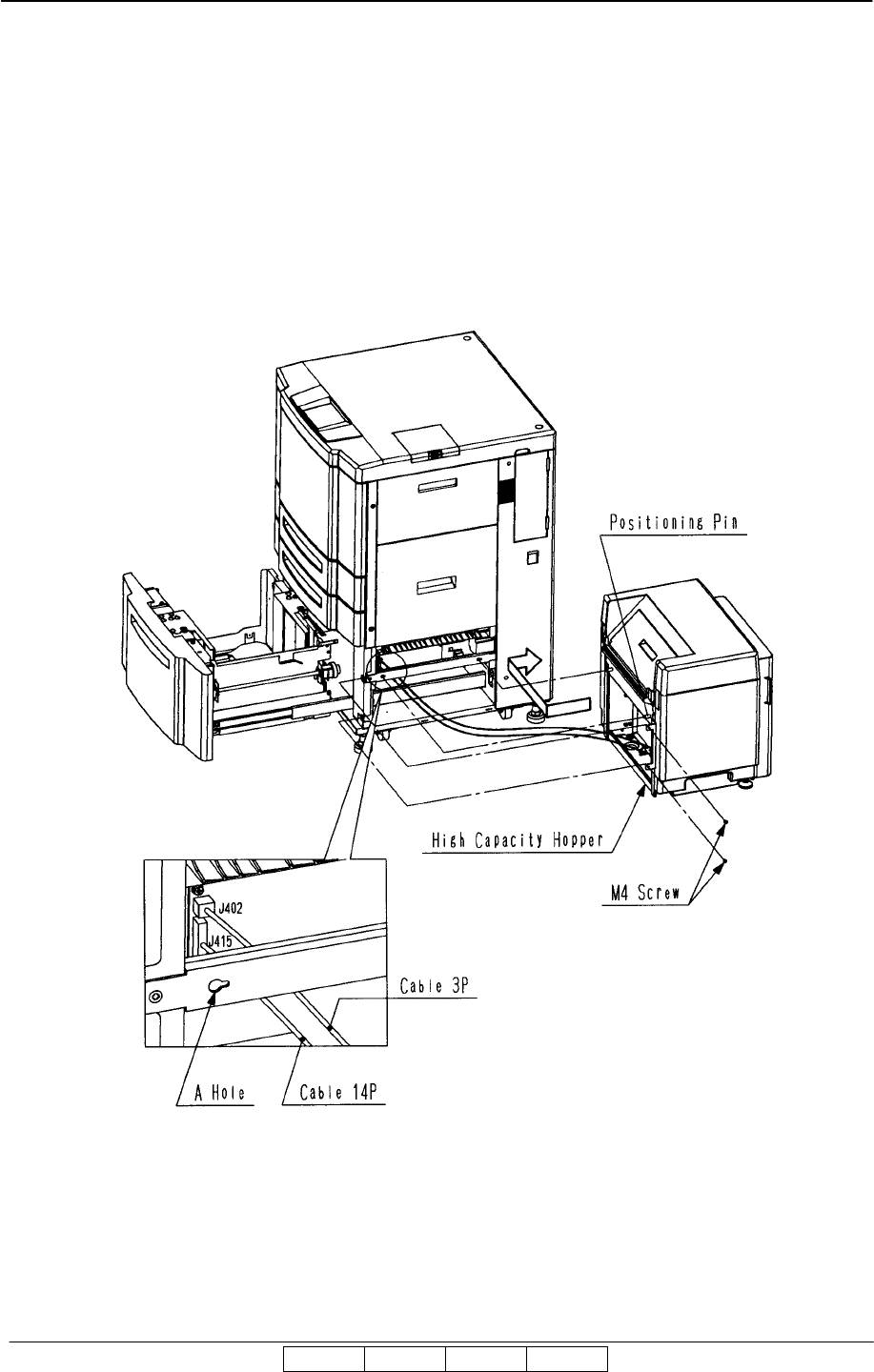

5) Connecting the High Capacity Hopper.
(1) Put the Positioning Pin in the hole A and slide the High Capacity Hopper in the arrow
direction.
(2) Make sure that the Cable does not get caught between the Printer and High Capacity
Hopper.
6) Tighten the two M4 screws.
7) Return the 2000 Sheet Hopper.
