Wireless Broadband Router User Manual
49
Chapter 5 Using Network Connections
Internet Protocol
This section has three options: No IP Address, Obtain an IP Address
Automatically, and Use the Following IP Address.
No IP Address Select this option if the connection will have no IP address. This is
useful if the connection operates under a bridge.
Obtain an IP Address Automatically Select this option if the network connection
is required by the ISP to obtain an IP address automatically. The server assigning
the IP address also assigns a subnet mask address, which can be overridden by
entering another subnet mask address.
Use the Following IP Address Select this option if the network connection uses a
permanent (static) IP address, then the IP address and subnet mask address.

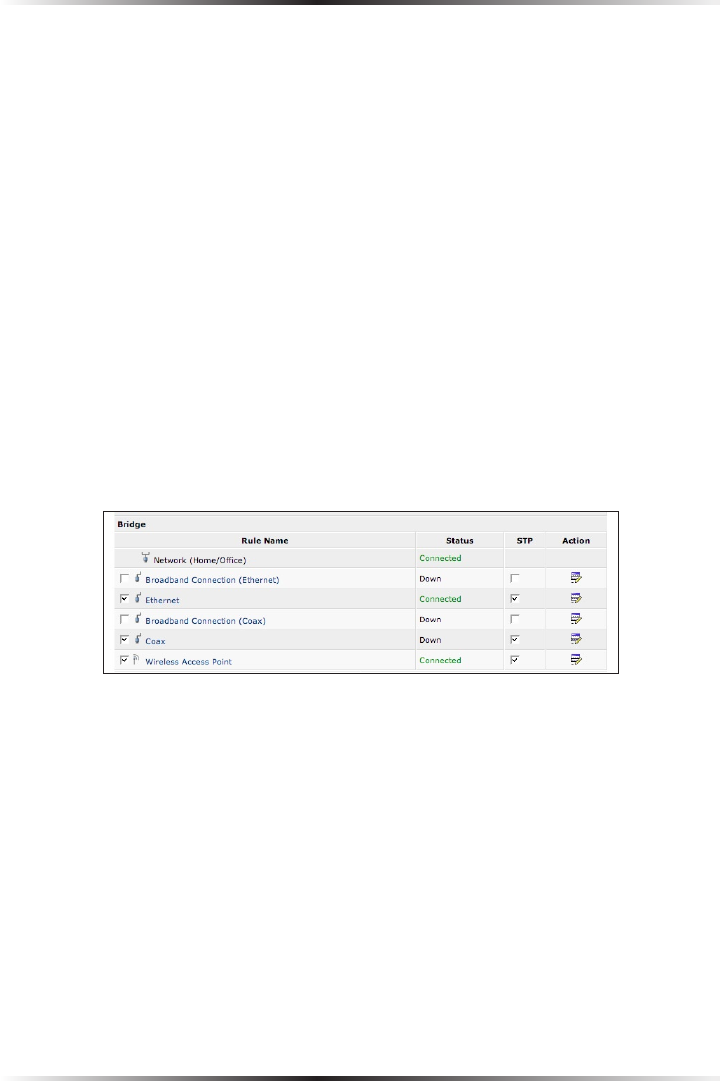

Bridge
The “Bridge” section of the Configure Network (Home/Office) screen is used to
specify which networks can join the network bridge.
☞
Note: When a network is disabled, its formerly underlying
devices inherit the network’s DHCP settings. For example, the
removal of a network configured as DHCP client automatically
configures the devices formerly constituting the network as
DHCP clients, with the exact DHCP client configuration.
Click in the check box next to the particular network to specify it. Make sure
there are no loops in the network configuration, and apply these settings in case
the network consists of multiple switches, or other bridges apart from those cre-
ated by the Router.
Status The “Status” column displays the connection status of a particular device.
