7" Modero Widescreen Touch Panels
Features on this page include:

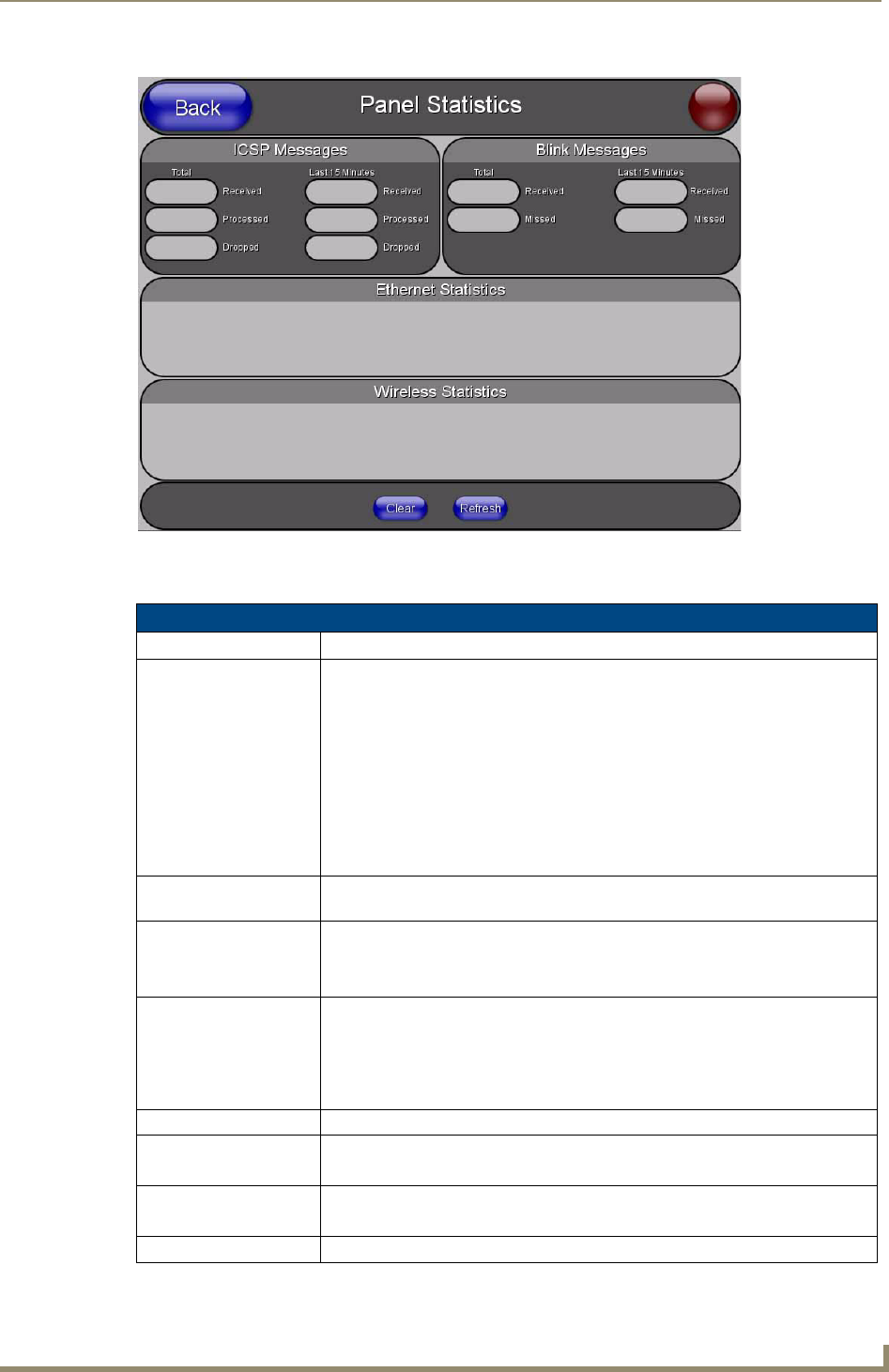

FIG. 86 Panel Statistics page
Panel Statistics Page
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state of
the panel to the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark green
every 5 seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain
yellow for 3 missed blink messages and then turn red. It will return to green
when a blink message is received.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
ICSP Messages Messages sent between the master and the touch panel; it is the protocol they use
to communicate to each other.
Total • Received - The total ICSP messages received by the panel.
• Processed - The total ICSP messages processed by the panel.
• Dropped - The total ICSP messages dropped by the panel.
Last 15 Minutes • Received - The total ICSP messages received by the panel in the last 15
minutes.
• Processed - The total ICSP messages processed by the panel in the last 15
minutes.
• Dropped - The total ICSP messages dropped by the panel in the last 15 minutes.
Blink Messages The master sends this message once every 5 seconds to all connected devices.
Total • Received - The total Blink messages received by the panel.
• Missed - The total Blink messages missed by the panel.
Last 15 Minutes • Received - The total Blink messages received by the panel in the last 15 minutes.
• Missed - The total Blink messages missed by the panel in the last 15 minutes.
Ethernet Statistics The Ethernet connection statistics for the panel.
