7" Modero Widescreen Touch Panels
NXA-WC80211GCF 802.11g Wireless Card (FG2255-07)
These panels can also connect to a wireless network using the (optional) 802.11g Wi-Fi CF card. This
internal WIC (FIG. 2) can be purchased separately as a Wi-Fi upgrade kit from AMX.
This interface card (FG2255-07) is a 2.4 GHz Wi-Fi LAN CF Card which upgrades a Modero panel’s
wireless RF capabilities from 802.11b to 802.11g. This card also provides the end-user with several new
methods of wireless encryption and data security such as WPA and WPA2. In addition to being
backwards compatible with 802.11b networks, this card is installable within all current MVP,
NXD-700Vi, NXD-10000Vi, CV7, and CV10 panels. To fully utilize these newer wireless security
features, this card must be used in tandem with the latest Modero firmware upgrade available at
www.amx.com.
802.11b Wireless Interface Card Specifications (Cont.)
Operating Channels: • 11 Channels (USA, Canada)
• 13 Channels (Europe)
• 14 Channels (Japan)
• 4 Channels (France)
Operating Environment: • Temperature: 0°C ~ 70°C (non-operating) and -15 ~ 80°C (storage)
• Humidity (non-condensing): 5% ~ 95% RH
Power Consumption: • TX power consumption: <
265 mA
• RX power consumption: <
165 mA
• Sleep Mode: 2 mA - 15 mA
Radio Data Rate: • 1Mbps, 2Mbps, 5.5Mbps, 11Mbps, Auto Rate
Receive Sensitivity: •@PER < 8%
11 Mbps: -83 dBm (max)
5.5 Mbps: -86 dBm (max)
2 Mbps: -89 dBm (max)
1 Mbps: -92 dBm (max)
RF Output Power: • 15 dBm +/- 1 dBm
• Channels 1 - 11 (North America)
Security: • WEP 64,128 bit, WPA/TKIP
Wireless Restrictions: • In R&TTE countries, such as France, the 802.11g frequency band is restricted to
2454 - 2483.5 MHz (2.4 - 2.4835 GHz) and a max power output of
100 mW EIRP outdoor.
It is recommended that any upgrade of internal equipment be done simultaneously in
order to reduce the risk of damage to internal components.

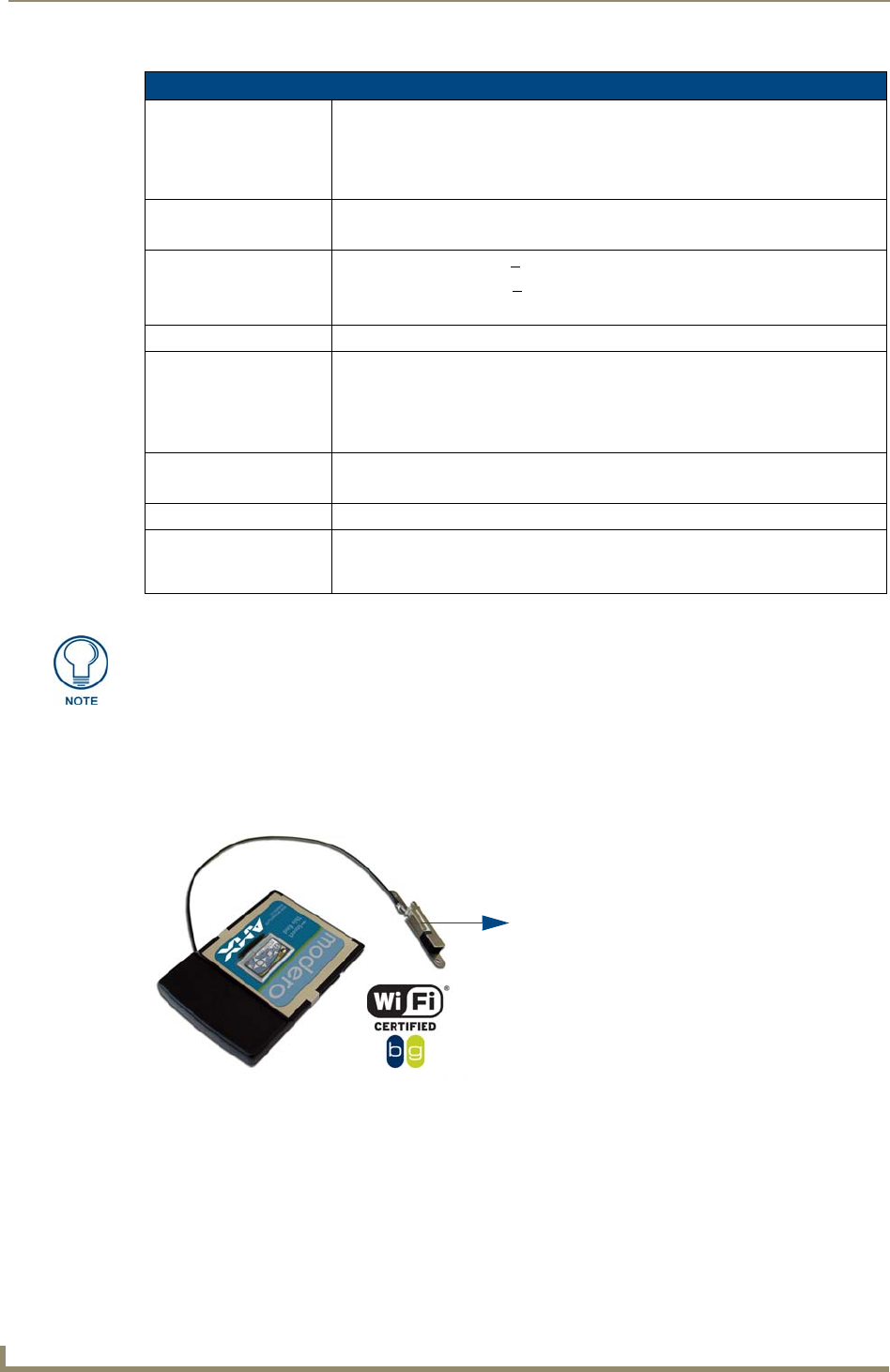

FIG. 2 NXA-WC80211GCF 802.11g wireless card
PIFA antenna
with metal plate
