7" Modero Widescreen Touch Panels
Firmware Pages and Descriptions
This section describes each firmware page and their specific functional elements.
Setup Navigation Buttons
These Setup Navigation Buttons (FIG. 53) appear on the left of the panel screen when the Setup page is
currently active.
Protected Setup Page
This button opens the Protected Setup page which centers around the properties used by the panel to
properly communicate with the NetLinx Master. Refer to both the Protected Setup Navigation
Buttons section on page 74 and the Protected Setup Page section on page 63 for more detailed
information.

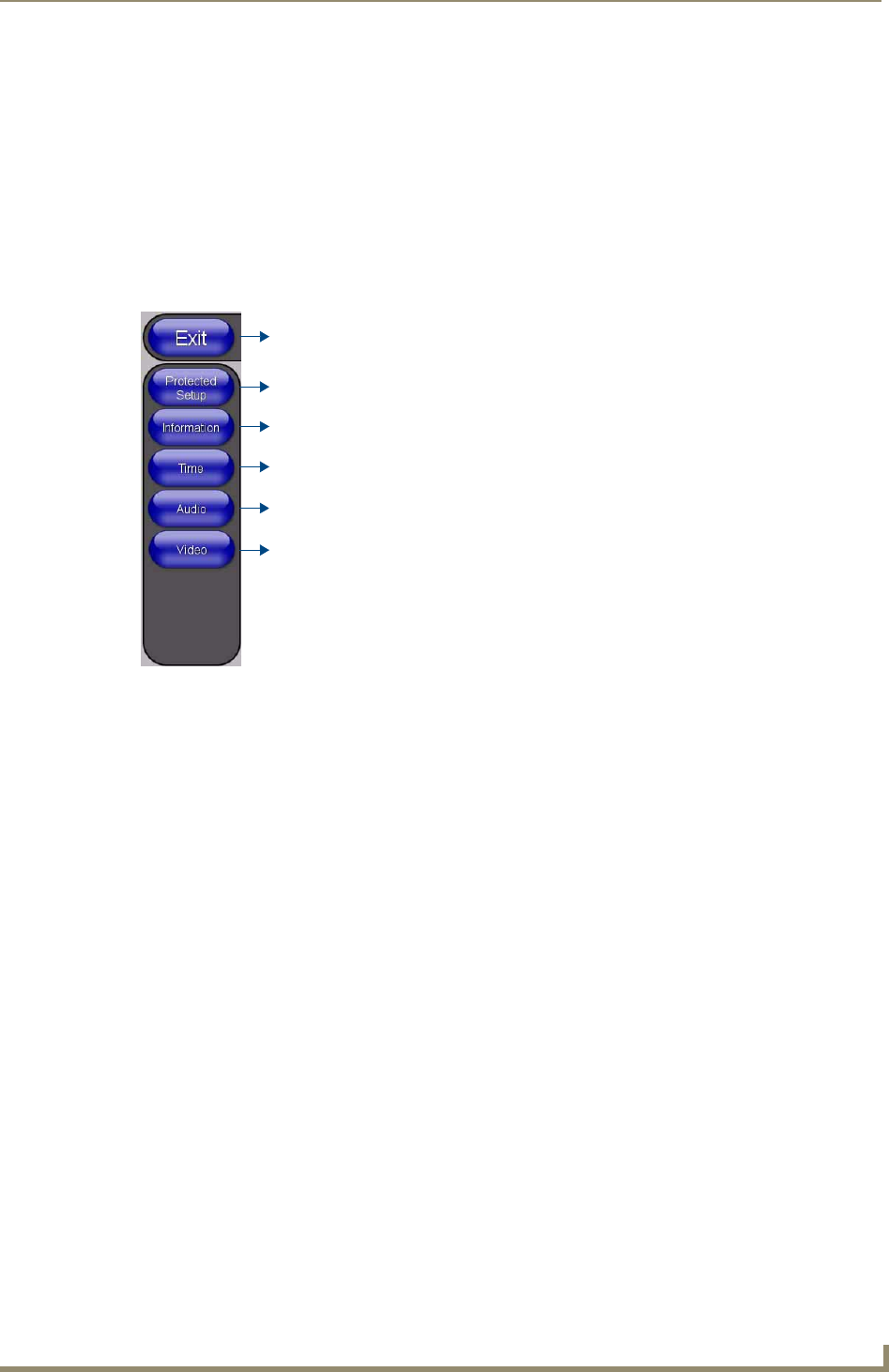

FIG. 53 Setup Navigation Buttons
Press to access the Protected Setup page for panel calibration and to access
security release passwords and connection settings.
Press to access the Information menu and select either Project Information or
Panel Information.
Closes the Setup page
Press to access the Time Adjustment page where you can alter the time and
date settings on the Master.
Press the Audio Adjustments button to access the Audio Settings page where you can
alter the audio parameters on the Modero panel.
Press the Video Adjustment button to access the Video Adjustment page where
you can set the video properties for incoming video.
This button only appears on Color Video (CV) capable touch panels.
