Installation
17
7" Modero Widescreen Touch Panels
3. Remove the wiring knockouts from the left side of the conduit box (CB-TP7) (FIG. 11) to
accommodate the cables being threaded through to the NXD touch panel.
4. Thread the incoming power, RJ-45 audio/video, Ethernet, and USB wiring through the knockouts
(use of the left wiring knockouts are recommended with this installation).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
5. Install the drywall/sheetrock before inserting the main NXD unit into the CB-TP7.
Installation of an NXD Touch Panel
The NXD-700Vi can be installed either directly into the (optional) CB-TP7 or other solid surface
environment using the two different mounting options: drywall clips or solid surface screws. The
following sections describe mounting the touch panel directly into a pre-wall conduit box, a solid surface
or drywall, and optional NXA-RK7 Rack Mount Kit.
Installing the NXD panel within a Conduit Box
The conduit box must be mounted prior to continuing this section. Refer to the procedures in the
Pre-Wall Installation of the Conduit Box section on page 16 for detailed pre-wall installation
instructions. Verify that all necessary cables have been threaded through the knockouts on the left of the
conduit box and the connections have been tested prior to installation of the NXD-700Vi.
1. Remove the Faceplate/bezel (A in FIG. 12) from the main NXD unit (B in FIG. 12) by gripping the
faceplate and pulling with gentle outward force.
Remember that when mounting this conduit box, the NXD mounting tabs must lie
flush against the outside of the sheetrock.

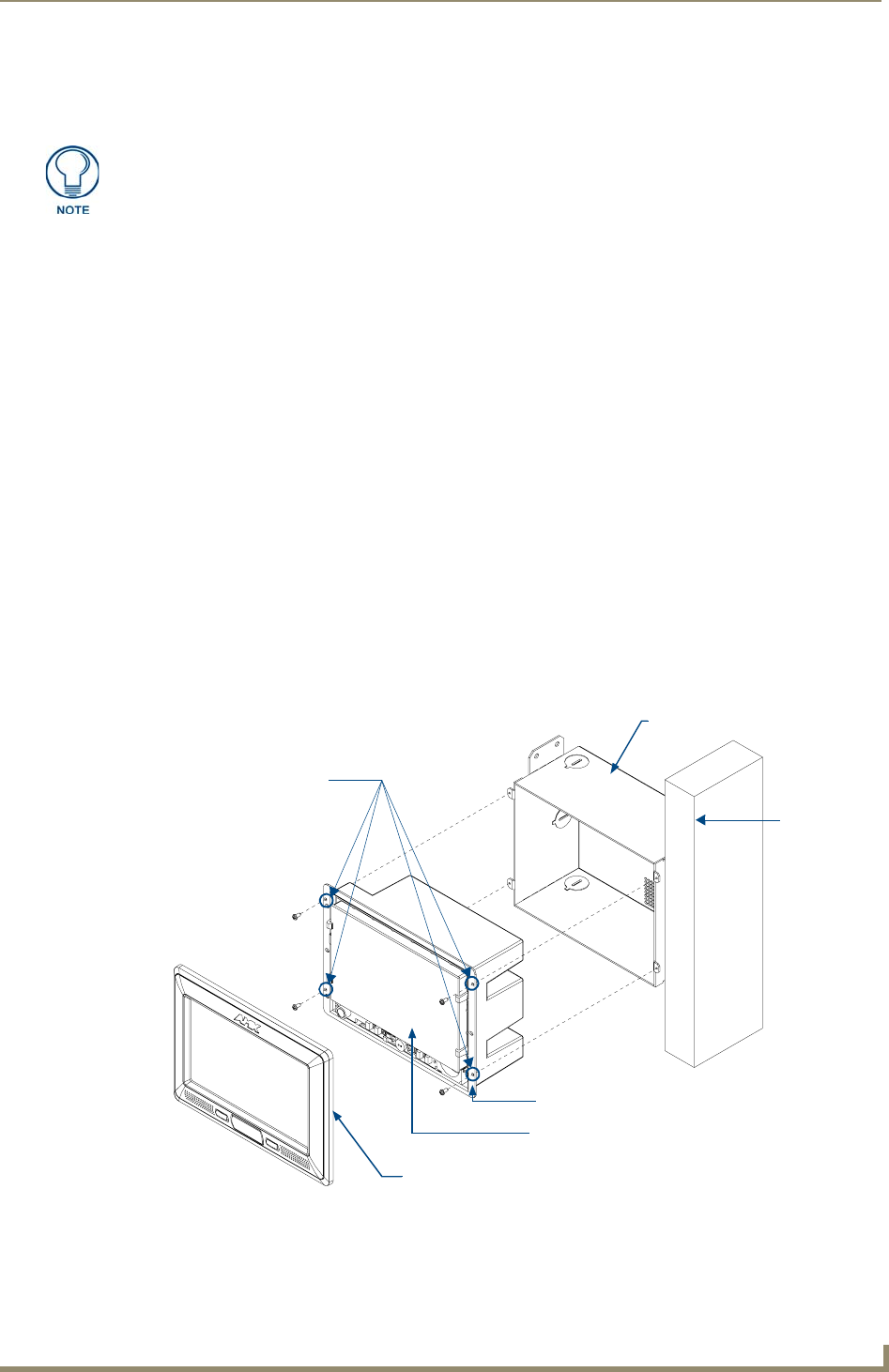

FIG. 12 NXD-700Vi panel installation into a CB-TP7 (pre-wall construction)
B - Main NXD unit consists of
C - Optional CB-TP7
#4-40 Mounting Screws
(four - included)
secure the NXD to
Stud
the touch panel and back box housing
conduit/wallbox
A - Faceplate/Trim Ring
default Faceplate comes with buttons
the Conduit Box
Mounting Tab
