Installation
14
7" Modero Widescreen Touch Panels
5. From along the internal surface of the Faceplate, remove the six buttons by gently bending each
Button latch up and pulling the button outwards.
6. Remove the pair of clear light pipe strips by bending the two black light pipe latches inwards and
pulling out the strip.
7. Grasp the No-Button Trim Ring on both sides and fit it into the groove along the outside surface of
the Faceplate (made available by the removal of the previous Trim Ring).
8. Gently insert the Trim Ring latches into their corresponding openings on the outer surface of the
internal Faceplate (FIG. 8).
9. Firmly press down around the No-Button Trim Ring until all of the latches are securely inserted into
their openings on the Faceplate, and the No-Button Trim Ring is securely fastened. Verify the
No-Button Trim Ring is firmly inserted onto the Faceplate and that there are no gaps between this
Trim Ring and the outer surface of the Faceplate.
10. Place the Faceplate back onto the main NXD-700Vi unit. Make sure to align the Microphone, Light,
and PIR Motion sensor locations on the main unit to their respective openings on the Faceplate
assembly.
Installing the Button Trim Ring
The outer No-Button Trim Ring is secured to the Faceplate with plastic latches. In order to re-install the
Button Trim Ring back onto an NXD panel which has had the default Button Trim Ring features
removed; you must first remove the No-Button Trim Ring:
1. To remove the Faceplate, simply pull it away from the panel by gently tugging it outwards until the
entire Faceplate comes away from the panel.
2. Turn the Faceplate over to expose the inside surface and view the Trim Ring latches.
3. In a single motion, press down and then outwards on the three Trim Ring latches located along the
top of the internal surface of the Faceplate to begin removing the Trim Ring. Removing the Internal
Faceplate from the panel exposes the pushbuttons openings left from an earlier removal of the
pushbuttons and LEDs.
4. Gently tug along the edges of the No-Button Trim Ring and work your way around the edges to
remove it from the Faceplate (FIG. 9).

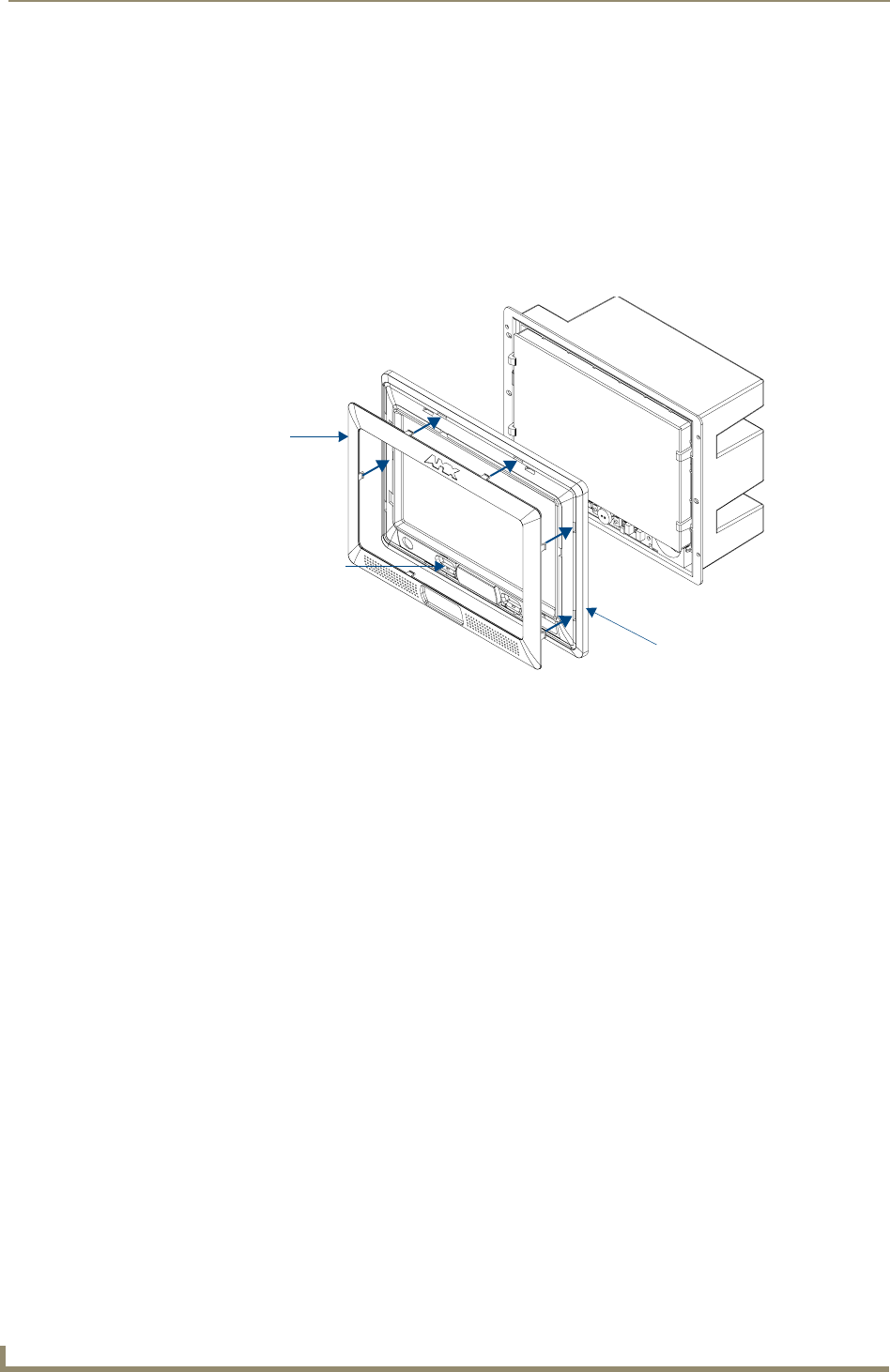

FIG. 8 Inserting the No-Button Trim Ring
No-Button Trim Ring
Faceplate (outer surface shown)
Hollow button openings
