ADSL-mode – RFC1483 Router
22 EN/LZT 108 6377 R4 - September 2003
5 ADSL-mode – RFC1483 Router
5.1 Description
RFC1483 (2684) Routed Mode (single PVC)
The RFC1483 Router mode allows a simple routed connection to the
Internet. This ADSL-mode can also be used together with NAT to let the
end-user connect an almost unlimited number of PCs on the LAN/WLAN
with only one IP address from the ISP.
NOTE! The HN294d supports RFC1483 Routed mode with static IP
addresses or with DHCP IP addresses assignment to the WAN
interface. No standard exists for DHCP over a RFC1483 Routed
connection, meaning this is a proprietary solution.
The built-in DHCP client will provide the built-in DHCP server with
information so that no configuration is needed of the built-in DHCP server
(DNS information etc is filled in automatically). PCs on the LAN/WLAN will
be assigned private IP addresses from the built-in DHCP server and the
NAT service will route the traffic to/from the WAN. All traffic from the
LAN/WLAN uses the same PVC (as in the normal ISP scenario).

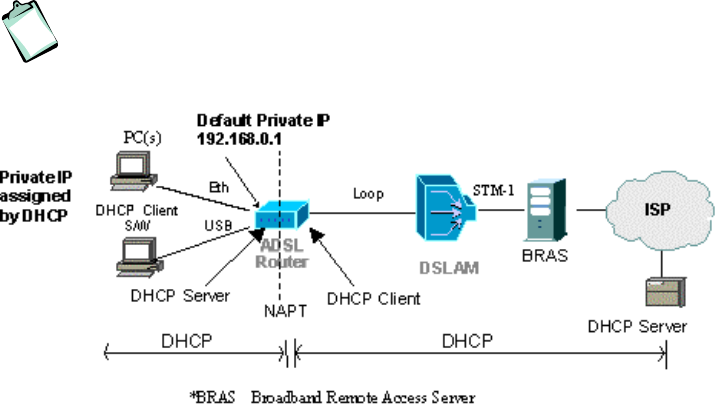

5.2 IP Addresses Assigned by DHCP
The PCs on the LAN/WLAN normally use the DHCP protocol. The IP
addresses are dynamically assigned to the PCs from the DHCP server in
the HN294d. If DHCP Relay is enabled, the IP addresses can be assigned
from a DHCP server at the ISP. Verify that your TCP/IP settings are set to
