12 Maintaining and Troubleshooting the Gateway ALR 7300 Server
System board components
The system board functions as the main interface between the processor,
memory, and peripherals. See the table below for the key to Figure 7.

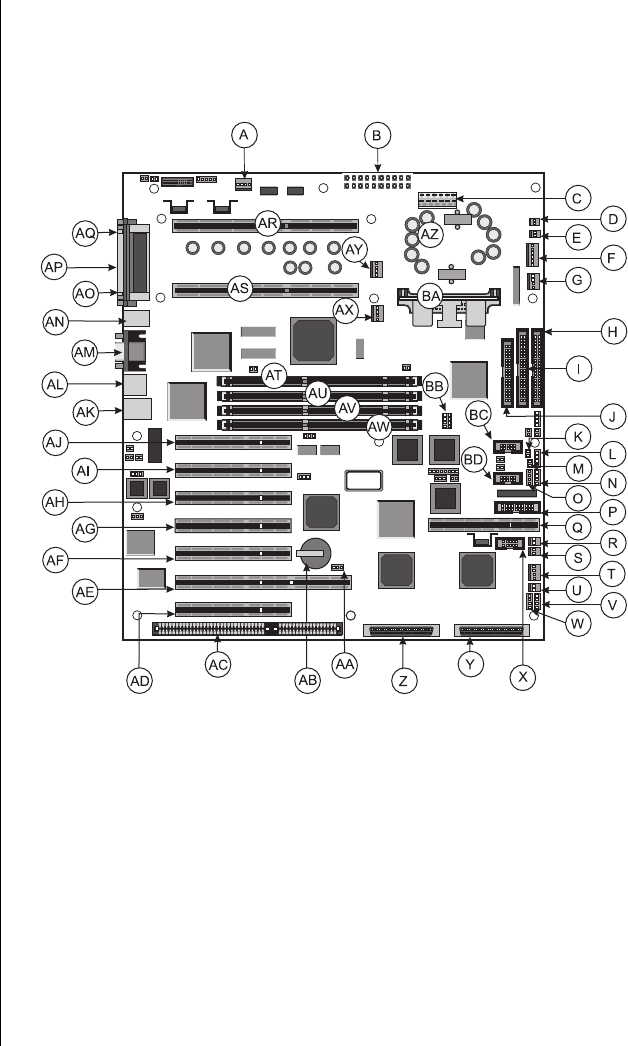

Figure 7: System Board
A
Chassis fan 1 connector
B
Power connector
C
Supplemental power connector
D
Soft power connector
E
Power supply power fault connector
F
Auxiliary power supply connector
G
Chassis fan 2 connector
H
Primary IDE connector
I
Secondary IDE connector
