PTM 1-7 B070/B071
1.3.2 ADF

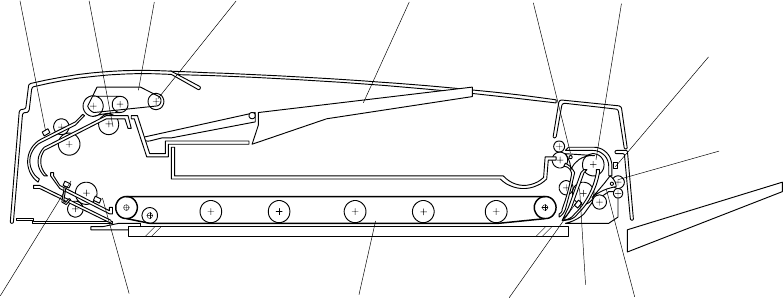

Overview
1. Entrance Sensor 9. Feed-out Roller
2. Separation Roller 10. Exit Junction Gate
3. Feed Belt 11. Inverter Roller
4. Pick-up Roller 12. Exit Sensor
5. Original Tray 13. Transport Belt
6. Inverter Junction Gate 14. Registration Sensor
7. Inverter Guide Roller 15. Width Sensors (x3)
8. Inverter Sensor
B070D869.WMF
10
12
13
14
15
1 2
3
4
5
6
7
8
9
11
