Original Exit (Double-Sided Original Mode)

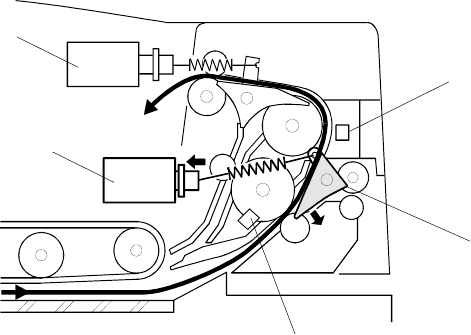

The exit gate solenoid [A] turns on and the exit gate [B] opens.
The inverter gate solenoid [C] remains off, and the original is fed out to the upper tray.
The transport belt motor turns off when the trailing edge of the original passes the exit
sensor [D].
To stack the originals neatly on the upper tray, the feed-out motor speed is reduced
shortly after the trailing edge of the original turns off the inverter sensor [E].
B070D929.WMF
[A]
[C]
[E]
[D]
[B]
