PTM 2-62 B070/B071
2.7.5 TONER RECYCLING AND WASTE TONER COLLECTION
Overview

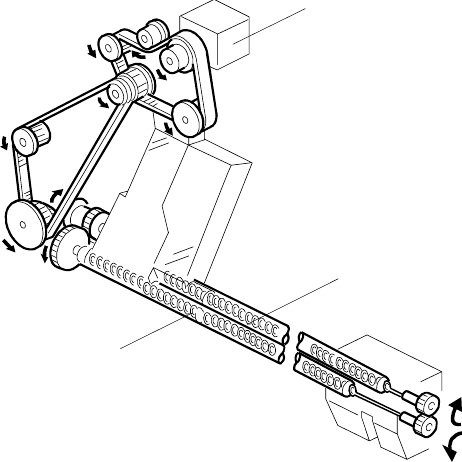

To recycle used toner for re-use, the toner recycling coil in the tube [A] transports the
toner collected by the drum cleaning to the toner entrance tank for recycling.
To collect waste toner that will no longer be used, the toner collection coil in the tube
[B] transports the toner collected by the transfer belt unit to the waste toner collection
bottle.
The drum motor [C] drives the toner recycling coil [A] via timing belts and gears,
whose rotation in return drives the toner collection coil [B] via gears.
B070D903.WMF
[A]
[B]
[C]
