PTM 2-71 B070/B071
2.9.4 TONER COLLECTION

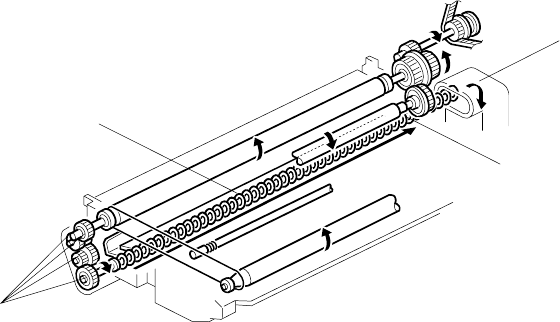

Transfer belt drive is transmitted to the toner collection coil [A] through idle gears [B].
The toner collection coil [C] transports the collected toner to the toner recycling unit [D]
and from there it goes to the waste toner collection bottle.
See Toner Supply and Recycling for details.
B070D505.WMF
[B]
[D]
[C]
[A]
