Connectors and Pin Assignments
86 4929 DSLAM Installation and User’s Guide 4929-A2-ZN20-30

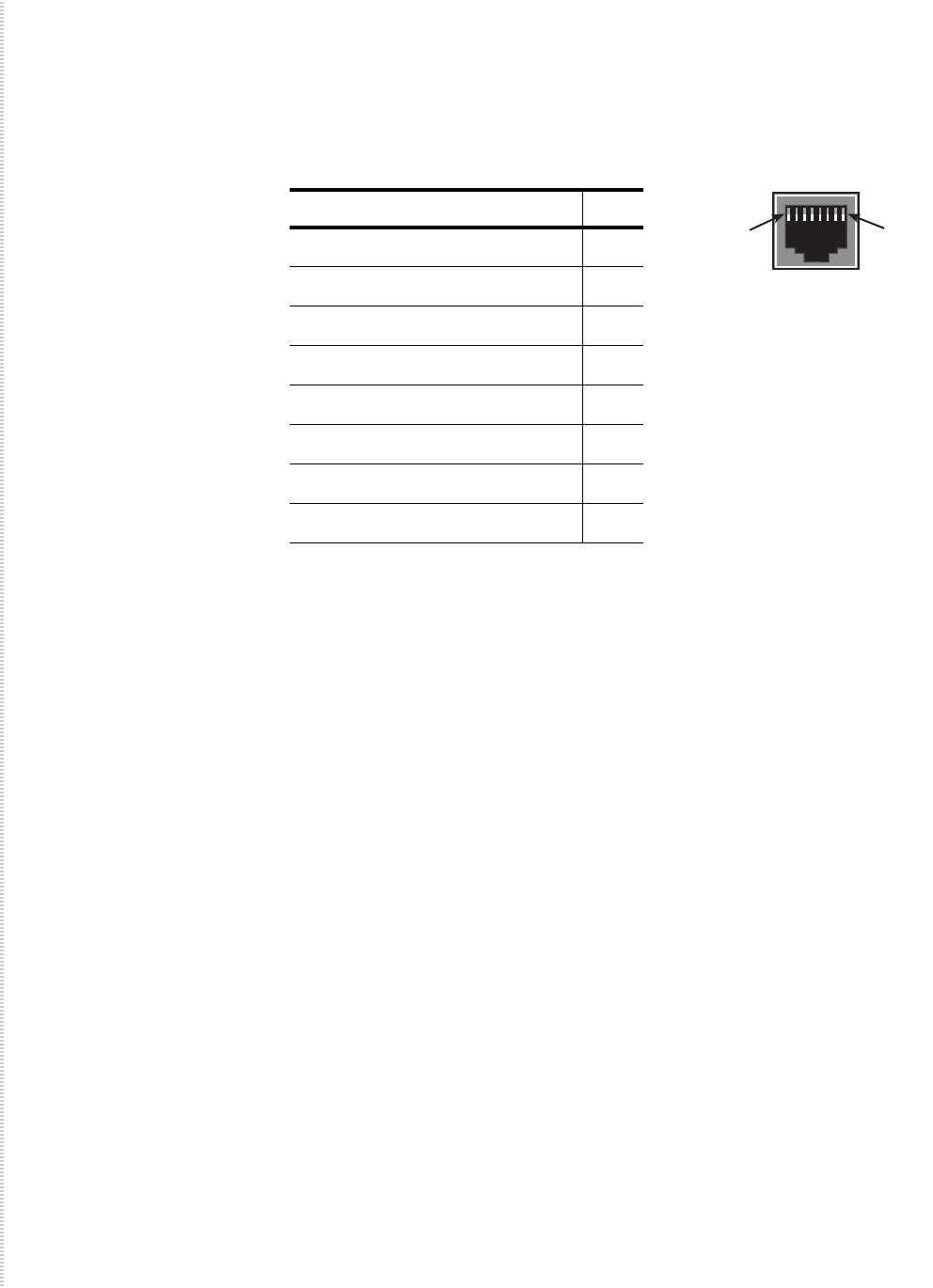

10/100/1000BaseT Connector
The 10/100/1000 port is an 8-pin unkeyed modular jack for a 10/100/
1000BaseT interface.
Table 7: 10/100/1000 Pinouts
Signal Pin
Transmitted Data + 1
Transmitted Data – 2
Received Data + 3
Unused 4
Unused 5
Received Data – 6
Unused 7
Unused 8
97-15449
Pin 1
Pin 8
