4. Connections
Adjustment steps :
• Treble / bass : from -14dB to +14dB, steps of 2dB
• Balance : from -79dB to 0dB, steps of 1dB
• Volume adjustable in steps of 0.5dB
• Subwoofer out in steps of 1dB
Output specifications
Left and right output channel + subwoofer channel.
Use of the audio pré-amp module
Stereo audio
source
L
R
L
R
OUT
LR
IN
SUBW
AUDIO
Audio amplifier
Input
Output
Solaris with Audio module
Image 4-11

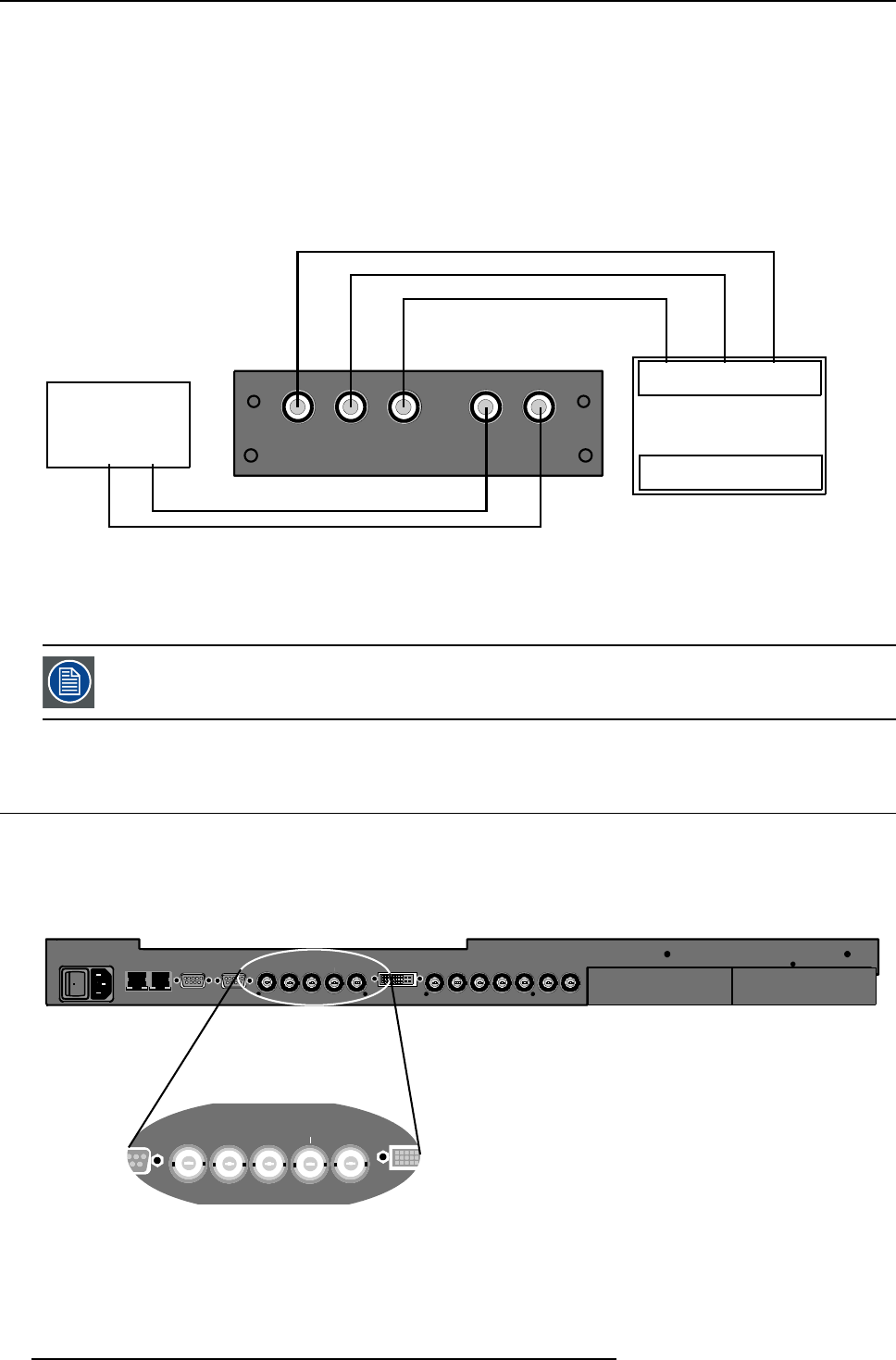

Principle drawing use of audio pré-amp module
The Solaris audio module must be mounted between the audio source (DVD player, video source,...) and the audio destination
(audio amplifier, active speakers ...). In this configuration, the user can control both video and audio parameters from one place (the
Solaris OSD menu or any other control device attached to the Solaris s
erial port).
This module is NOT an audio amplifier.
4.3 RGB out at native screen resolution (WXGA)
Output
The processed signal, rotated or not rotated is available
in screen format for loop through to the next Solaris LC40.
Be aware of the rotation setting of the next Solaris LC40. When the output is already rotated, do not rotate the input image again in
the next Solaris LC40.
DVI
RGB out (1280x768)
RGBHV
RS232
OUT IN
LAN
RGB analog
R
GB
HVINOUT
SDI
RGB out (1280x768)
RGBHV
Image 4-12
RGB out on panel resolution
24 R5976672 SOLARIS LC40 13/01/2005
