13. Installation menu
13. INSTALLATION MENU
Overview
• Lens adjustments
• Projector address
• Orientation
• Language
• Quick access keys
• RS232 baudrate
• Automatic startup
• Security
• Change password
• Gemini installed (only for GEMINI CADWALL systems ! )
13.1 Lens adjustments
What can be done ?
Motorized lenses can be adjusted in the installation menu or via the dedicated keys on the remote.
The following parameters can be adjusted:
•Zoom
• Focus
• Shift (also for non motorized lenses)
How to Zoom/focus or shift ?
1. Press MENU to activate the Toolbar
2. Press → to select the Installation
3. Press ↓ to Pull down the Installation menu
4. Use ↑ or ↓ to select Len s adjustment (image 13-1)
5. Press ENTER
A textbox appears on the screen, follow the instructions. (image 13-2, image 13-3)

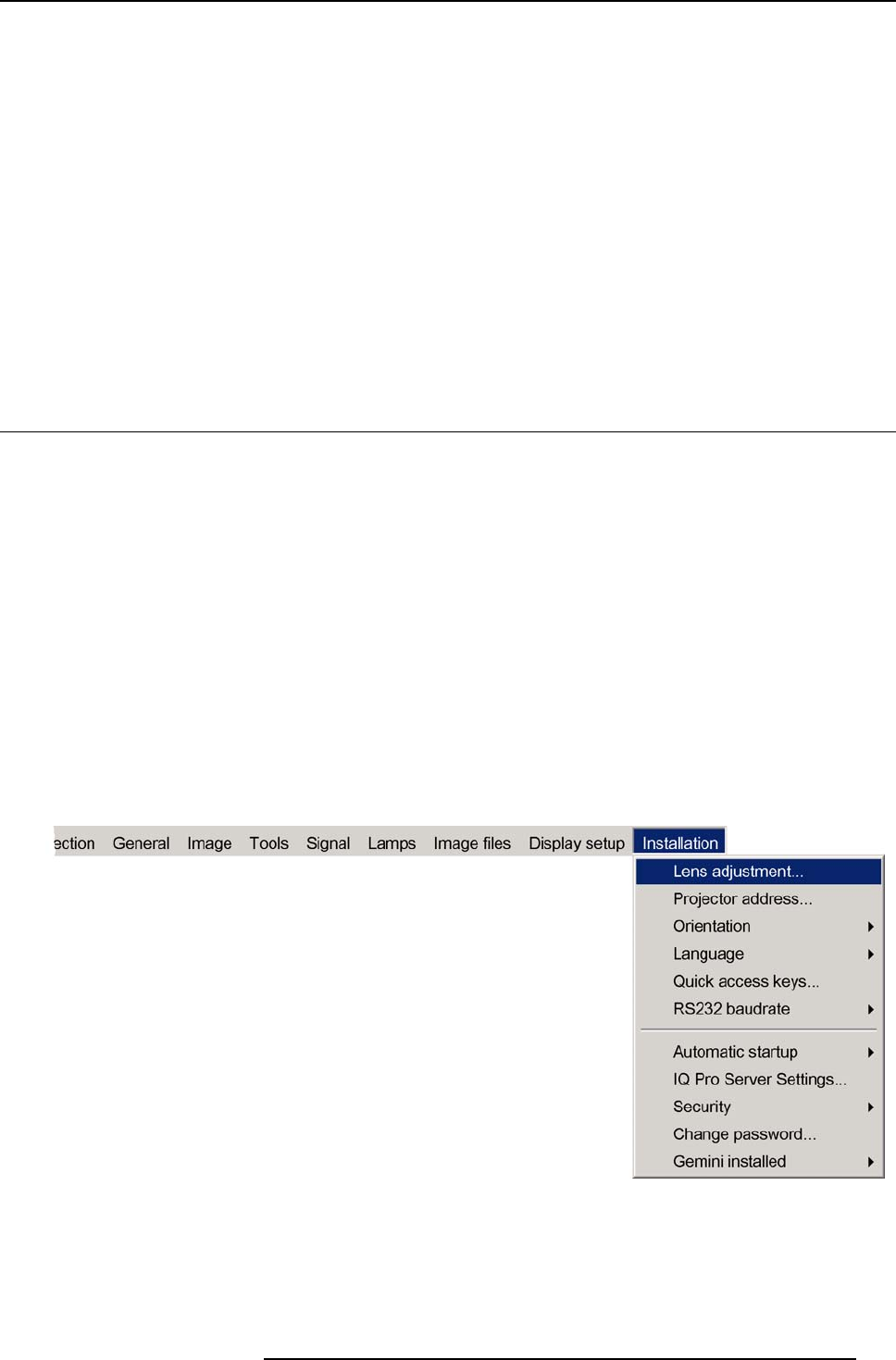

Image 13-1
R5976694 IQ PRO R500 01/02/2007 115
