132 IBM ^ xSeries 440 Planning and Installation Guide
5.1.1 Using Active PCI Manager
The Active PCI Manager interface is shown in Figure 5-3. The details of your
system configuration are available in three ways by clicking the appropriate tab:
Slot view, Figure 5-3
Tree view, Figure 5-5 on page 135
Table view, Figure 5-6 on page 136

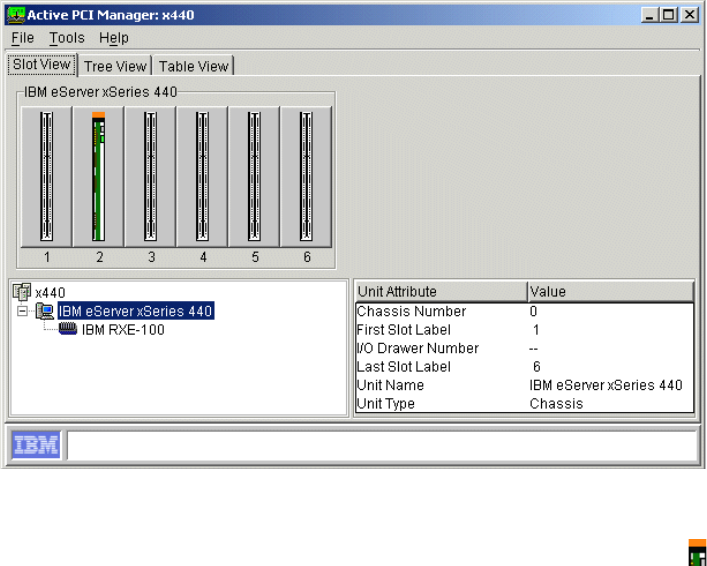

Figure 5-3 x440 slot view
In the slot view, we see a graphical representation of our ServeRAID adapter in
slot 2 of the x440 and the other slots empty. The orange bar above the adapter
indicates that the adapter present in that slot is hot-swappable.
The tree pane in this view (lower left) shows there is an RXE-100 attached to the
server. By selecting the RXE-100, the graphical view changes to show the six or
12 slots in that enclosure.
The details pane in this view (lower right) includes information about the currently
selected item in the tree pane or the currently selected slot. In Figure 5-3, the
server is selected and the details pane shows information about the system and
its slots, including:
Chassis Number: The x440 is assigned chassis number 0. In multi-chassis
x440 configurations, each chassis will be identified by a unique number.
