82 Hardware Maintenance Manual: xSeries 200
To remove the handle cap, do the following:
1. Power-off the server, if it is on.
2. Unplug the server.

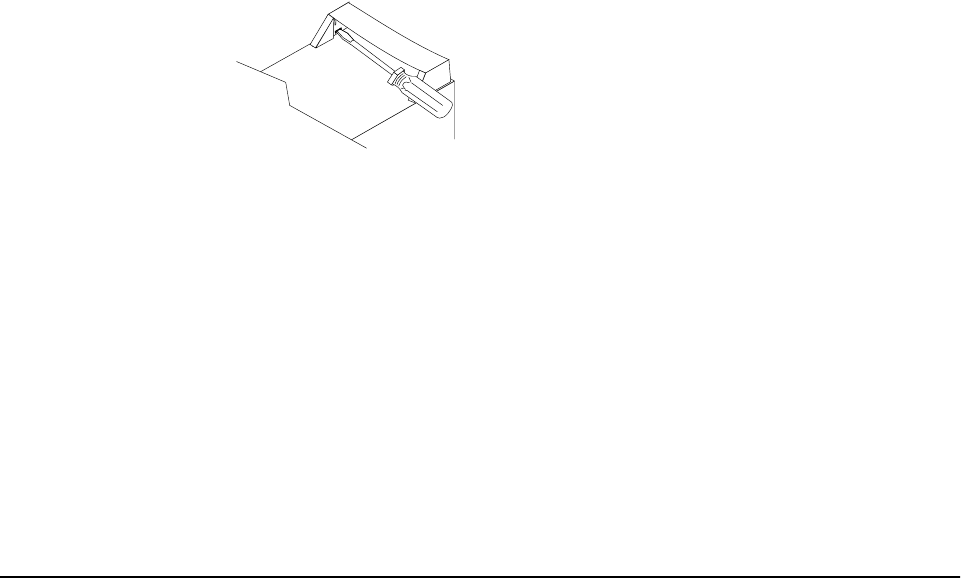

3. Use a flathead screwdriver to gently press in and down on the tabs located on the
interior side wall of the handle.
4. Lift up on the handle cap to separate it from the handle support.
To remove the handle support, do the following:
1. Power-off the server, if it is on.
2. Unplug the server.
3. Firmly grasp the handle support and slide it away from the front bezel.
4. Lift up on the handle support to remove it from the slots in the top of the chassis.
Adapter retainer
Before you begin:
• Read “Safety information” on page 105.
• Review the information in “Before you begin” on page 38.
