Chapter 1 Installation and Removal
20

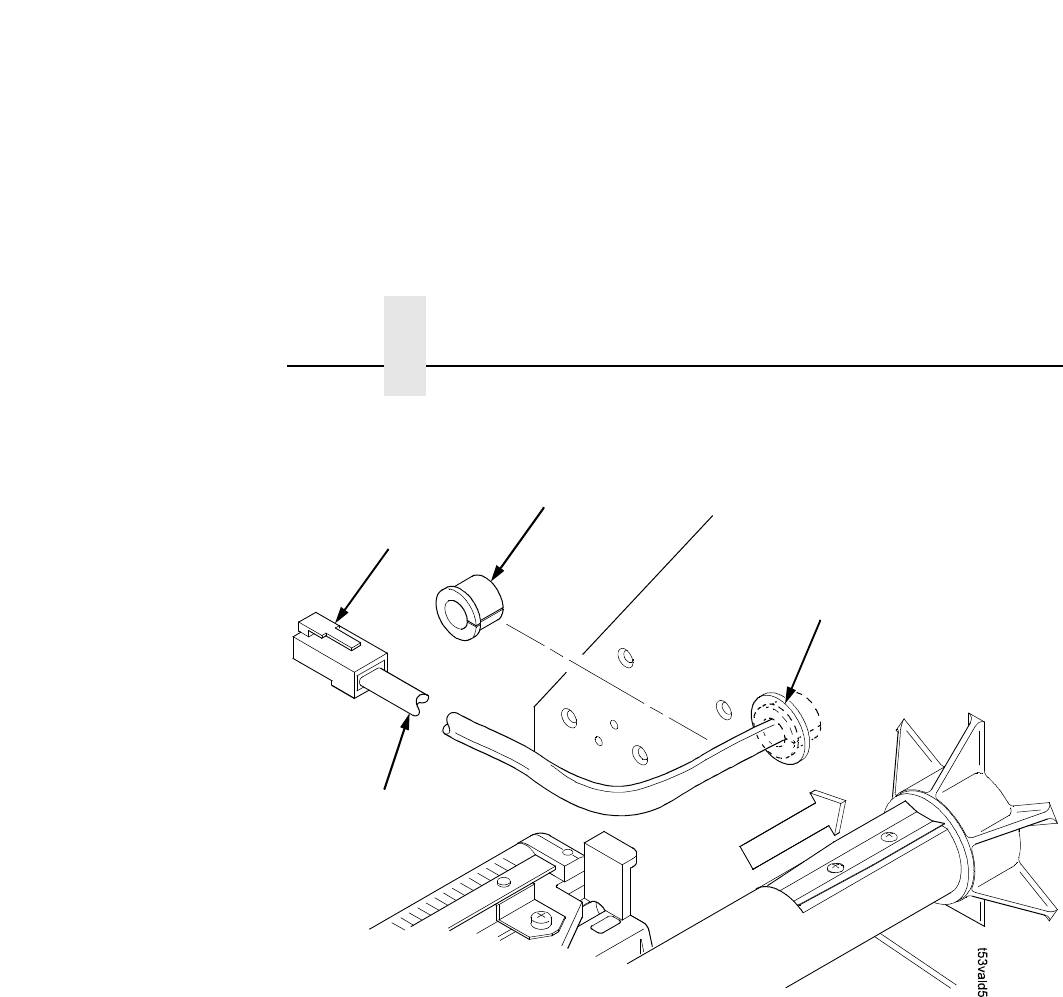

Figure 6. Adding the Grommet to the Power/Data Cable
10. On the media side of the printer, slide the split grommet onto
the power/data cable and insert it into the frame opening.
(Figure 6.)
11. Inspect the power/data cable to ensure approximately
17 inches of cable is exposed from the grommet to connect it to
the validator.
NOTE: You will plug the power/data cable into the validator later.
Split
Grommet
Power/Data Cable
(approximately
17 inches exposed)
Inserted Split
Grommet
(media side)
RJ-11
Connector
